Reassembly [01/2017 - ]: Procedure

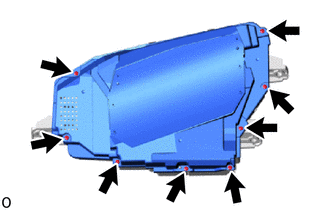

  1. INSTALL NO. 1 COMBINATION METER MIRROR PLATE
    1. GTY833291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the No. 1 combination meter mirror plate with the 8 screws.
