Components [01/2017 - ]

Fig 1: Headup Display Replacement Components With Torque Specifications (1 Of 3)
GTY782145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 2 DECK BOARD *2 NEGATIVE AUXILIARY BATTERY TERMINAL
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) - -

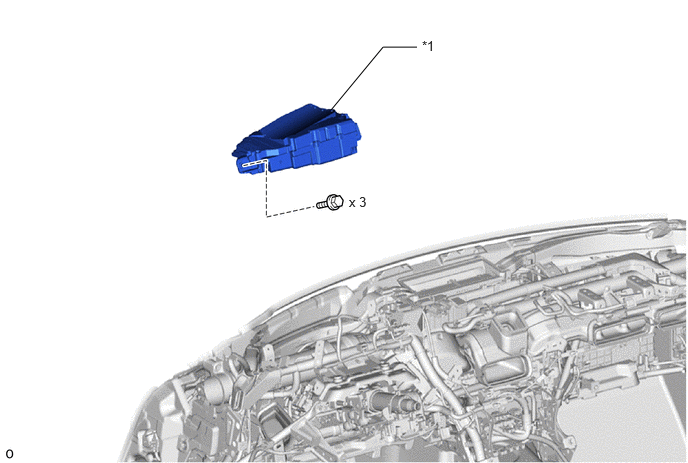

Fig 2: Headup Display Replacement Components (2 Of 3)
GTY1171893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 METER MIRROR SUB-ASSEMBLY -

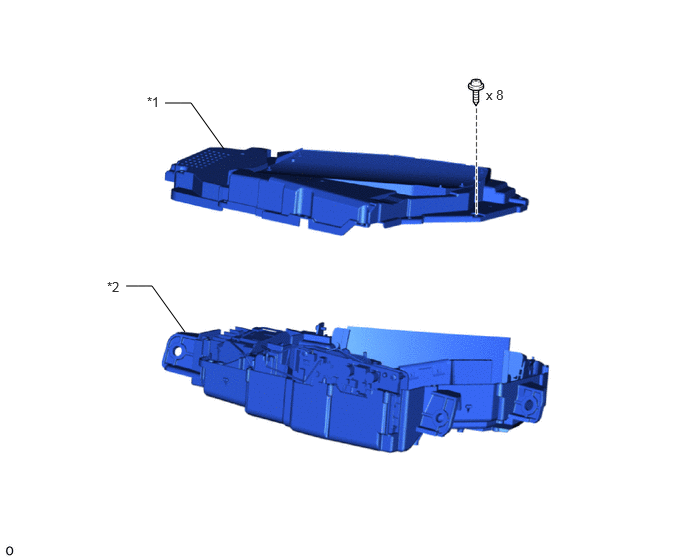

Fig 3: Headup Display Replacement Components (3 Of 3)
GTY783599Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 COMBINATION METER MIRROR PLATE *2 COMBINATION METER MIRROR ECU
