Meter / Gauge / Display - Service Information
>>
Combination Meter
>>
Components [01/2017 - ]
Components [01/2017 - ]

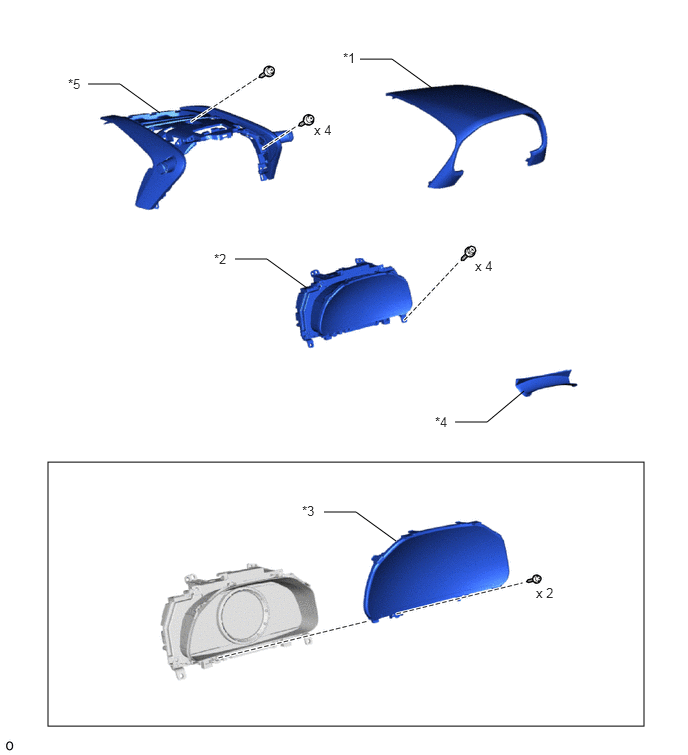

Fig 1: Combination Meter Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CENTER UPPER INSTRUMENT CLUSTER FINISH PANEL
*2
COMBINATION METER ASSEMBLY
*3
COMBINATION METER GLASS
*4
METER HOOD SPACER
*5
METER HOOD SUB-ASSEMBLY
-
-
