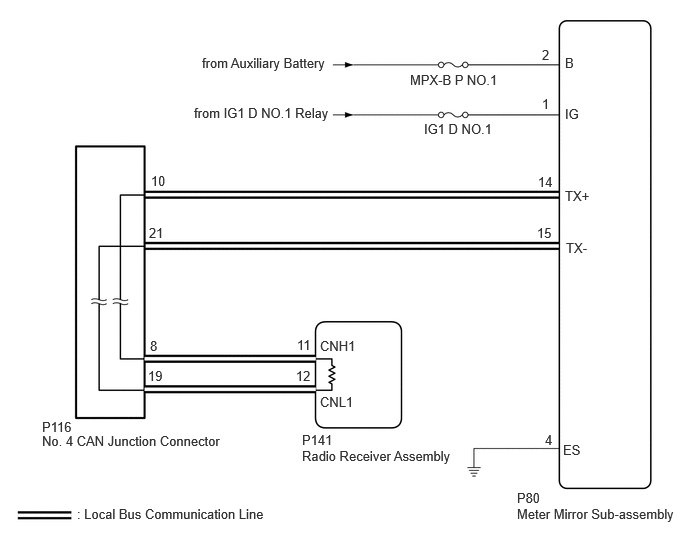

DTC B1321-87: Lost Communication with EMV Missing Message [05/2023 - ]: Wiring Diagram

GTY1242702

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
