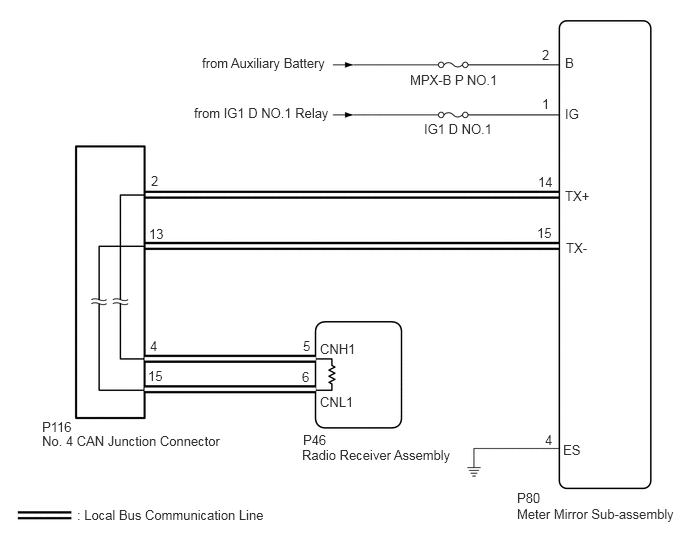

DTC B1321-87: Lost Communication with EMV Missing Message [01/2017 - 05/2023]: Wiring Diagram

GTY820688

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
