Removal [03/2017 - 05/2023]: Procedure

Refer to REMOVAL [03/2017 - 05/2023]

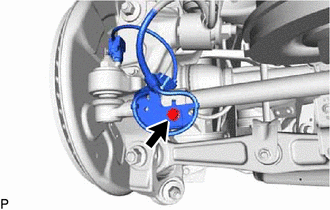

1. Remove the bolt and disconnect skid control sensor wire LH from the toe control link sub-assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

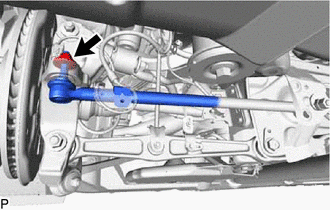

1. Remove the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

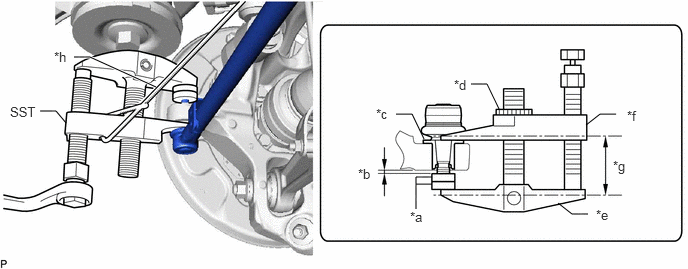

2. Install 2 SST (spacer B) onto the toe control link sub-assembly LH so that there is a space of approximately 1 mm (0.0394 in.) between the arm and spacers.
   • SST: 09960-20010
     1. 09961-02060

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	SST (Spacer B)	*b	1 mm (0.0394 in.)
   *c	Spacer	*d	Center Nut
   *e	Body	*f	Claw
   *g	Parallel	*h	String

   NOTE:

   • Make sure to install the spacers (SST spacer B) as the rear axle carrier sub-assembly LH spacer may shift.
   • As SST may become damaged, make sure the space between the arm and spacers is not 1 mm (0.0394 in.) or less.
3. Using SST, disconnect the toe control link sub-assembly LH from the rear axle carrier sub-assembly LH.
   • SST: 09960-20010
     1. 09961-02010
   NOTE:

   • Apply molybdenum grease to the bolt threads and end of the SST bolt.
   • Do not damage the dust cover.
   • As the dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
   • Make sure to tie the string of SST to the vehicle to prevent SST from dropping.

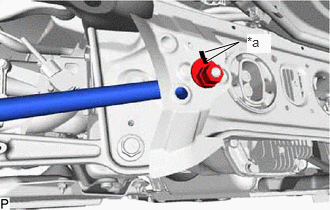

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   Place matchmarks on the rear No. 2 suspension toe adjust plate and rear suspension member sub-assembly.

5. Remove the nut, rear suspension toe adjust cam sub-assembly, rear No. 2 suspension toe adjust plate and toe control link sub-assembly LH.
