On-Vehicle Inspection [03/2017 - ]: Procedure

  1. INSPECT TOE CONTROL LINK SUB-ASSEMBLY LH
    1. Check for looseness.
      1. Lift up the vehicle.

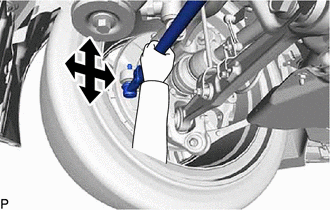

      2. GTY813374Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Move the toe control link sub-assembly LH up and down then left and right by hand to check that there is no looseness at the toe control link sub-assembly LH.
