Removal [03/2017 - 04/2020]: Procedure

  1. REMOVE REAR WHEEL

    Refer to REMOVAL [03/2017 - 05/2023]

  2. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY LH
    1. Remove the nut.
      GTY835642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install 2 SST (spacer A) onto the rear No. 1 suspension arm assembly LH so that there is a space of approximately 1 mm (0.0394 in.) between the arm and spacers.
      • SST: 09960-20010
        1. 09961-02050

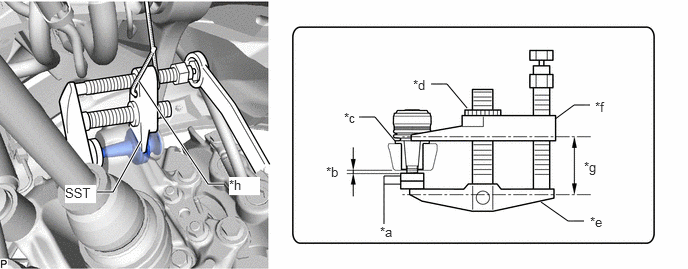

      GTY775924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a SST (Spacer A) *b 1 mm (0.0394 in.)
      *c Spacer *d Center Nut
      *e Body *f Claw
      *g Parallel *h String
      NOTE:
      • Make sure to install the spacers (SST spacer A) as the rear axle carrier sub-assembly LH spacer may shift.
      • As SST may become damaged, make sure the space between the arm and spacers is not 1 mm (0.0394 in.) or less.
    3. Using SST, disconnect the rear No. 1 suspension arm assembly LH from the rear axle carrier sub-assembly LH.
      • SST: 09960-20010
        1. 09961-02010
      NOTE:
      • Apply molybdenum grease to the bolt threads and end of the SST bolt.
      • Do not damage the dust cover.
      • As the dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
      • Make sure to tie the string of SST to the vehicle to prevent SST from dropping.
    4. GTY837300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the nut, washer, bolt and rear No. 1 suspension arm assembly LH from the rear suspension member sub-assembly.

  3. REMOVE REAR SHOCK ABSORBER WITH COIL SPRING LH

    Refer to REMOVAL [03/2017 - 05/2023]

  4. REMOVE REAR SHOCK ABSORBER WITH COIL SPRING RH

    HINT:

    Perform the same procedure as for the LH side.

  5. REMOVE PROPELLER SHAFT ASSEMBLY

    Refer to REMOVAL [03/2017 - ]

  6. DISCONNECT REAR UPPER CONTROL ARM ASSEMBLY LH
    1. Remove the nut.
      GTY813300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install 2 SST (spacer A) onto the rear upper control arm assembly LH so that there is a space of approximately 1 mm (0.0394 in.) between the arm and spacers.
      • SST: 09960-20010
        1. 09961-02050

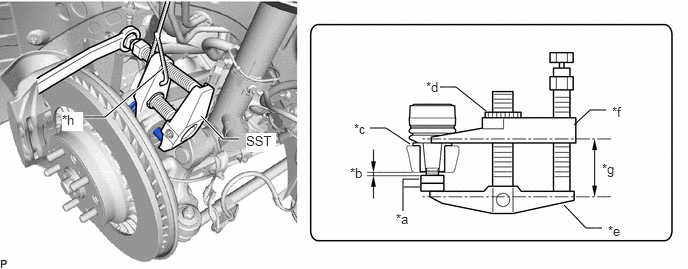

      GTY826629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a SST (Spacer A) *b 1 mm (0.0394 in.)
      *c Spacer *d Center Nut
      *e Body *f Claw
      *g Parallel *h String
      NOTE:
      • Make sure to install the spacers (SST spacer A) as the rear axle carrier sub-assembly LH spacer may shift.
      • As SST may become damaged, make sure the space between the arm and spacers is not 1 mm (0.0394 in.) or less.
    3. Using SST, disconnect the rear upper control arm assembly LH from the rear axle carrier sub-assembly LH.
      • SST: 09960-20010
        1. 09961-02010
      NOTE:
      • Apply molybdenum grease to the bolt threads and end of the SST bolt.
      • Do not damage the dust cover.
      • As the dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
      • Make sure to tie the string of SST to the vehicle to prevent SST from dropping.
    4. GTY813285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Loosen the bolt.

      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

  7. DISCONNECT REAR SUSPENSION MEMBER SUB-ASSEMBLY
    1. Support the rear suspension member sub-assembly with an engine lifter using 4 attachments or equivalent tools as shown in the illustration.

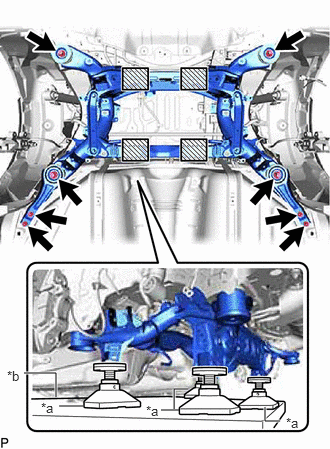

      GTY802617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Attachment
      *b Engine Lifter
      Attachment placement location
      WARNING:
      • The rear suspension member sub-assembly is a very heavy component. Make sure that it is supported securely.
        GTY628581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • If the rear suspension member sub-assembly is not securely supported, it may drop, resulting in serious injury.
      NOTE:

      Use attachments to keep the rear suspension member sub-assembly level.

    2. Remove the 8 bolts, rear lower suspension member stopper LH, rear lower suspension member stopper RH, rear lower suspension member stopper and rear suspension member sub-assembly.
    3. Gradually lower the universal engine lifter until it reaches a position where the bolt of the rear upper control arm assembly LH can be removed and disconnect the rear suspension member sub-assembly.
      NOTE:
      • When lowering the rear suspension member sub-assembly, be careful not to damage the vehicle body or other components installed to the vehicle.
      • Check that the brake hose and wire harness are not stretched before performing this procedure.
  8. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH
    1. GTY813285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the bolt, nut and rear upper control arm assembly LH.
