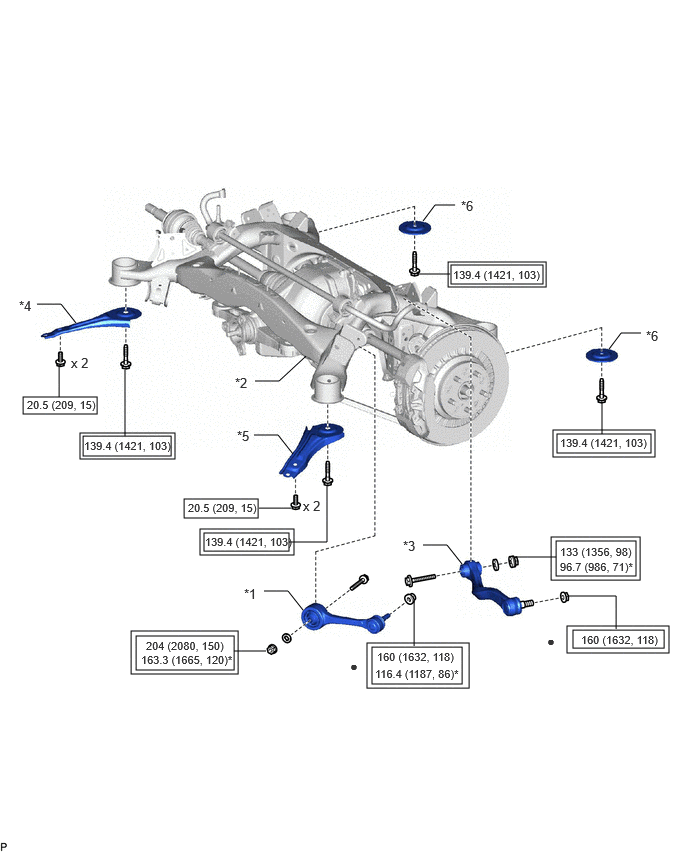

Components [05/2023 - ]
| *1 | REAR NO. 1 SUSPENSION ARM ASSEMBLY LH | *2 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY LH | *4 | REAR LOWER SUSPENSION MEMBER STOPPER RH |
| *5 | REAR LOWER SUSPENSION MEMBER STOPPER LH | *6 | REAR LOWER SUSPENSION MEMBER STOPPER |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with ball joint lock nut wrench | • | Non-reusable part |
