Removal [03/2017 - ]: Procedure

  1. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

    Refer to REMOVAL [03/2017 - 04/2020] , or refer to REMOVAL [04/2020 - 05/2023] , or refer to REMOVAL [05/2023 - ]

  2. REMOVE REAR STABILIZER LINK ASSEMBLY LH

    See step  4 [03/2017 - 05/2023], or see step  4 [05/2023 - ]

  3. REMOVE REAR STABILIZER LINK ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.

  4. REMOVE REAR STABILIZER BAR

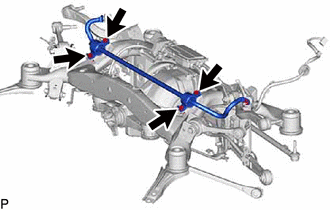

    1. Remove the 4 bolts and rear stabilizer bar.
      GTY813384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      The stabilizer bracket and bush are built onto the stabilizer bar. If the bracket and/or bush detach from the bar, replace the bar.
