Installation [03/2017 - ]: Procedure

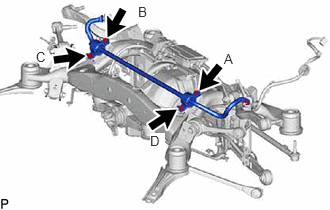

1. Install the rear stabilizer bar with the 4 bolts.

   Torque: 51 N.m (520 kgf/cm, 38 ft.lbf)

   NOTE:

   Temporarily tighten the bolt (A), and then fully tighten the 4 bolts in the order of (B), (C), (D), and (A).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  4 [03/2017 - 04/2020], or see step  4 [04/2020 - 05/2023], or see step  4 [05/2023 - ]

HINT:

Perform the same procedure as for the LH side.

Refer to INSTALLATION [03/2017 - 04/2020] , or refer to INSTALLATION [04/2020 - 05/2023] , or refer to INSTALLATION [05/2023 - ]
