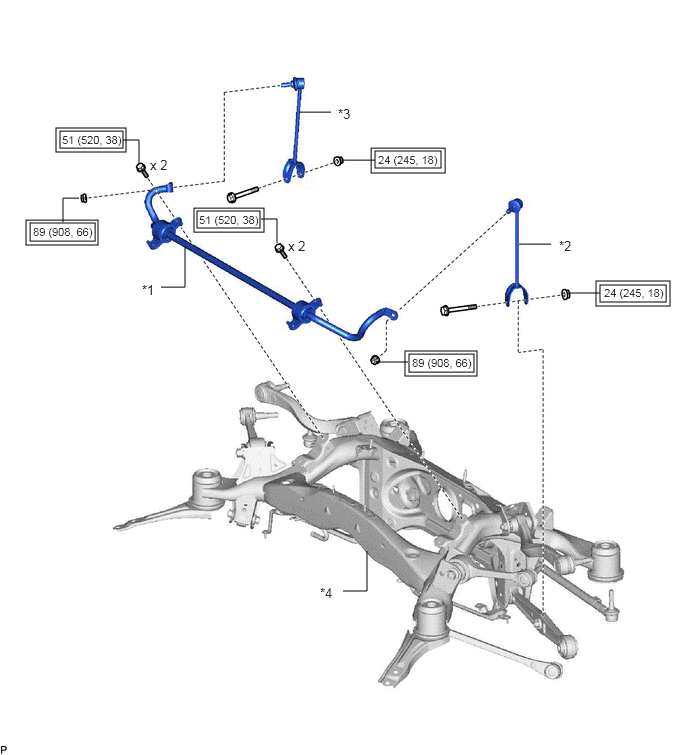

Components [03/2017 - 04/2020]
| *1 | REAR STABILIZER BAR | *2 | REAR STABILIZER LINK ASSEMBLY LH |
| *3 | REAR STABILIZER LINK ASSEMBLY RH | *4 | REAR SUSPENSION MEMBER SUB-ASSEMBLY |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | - | - |
