Installation [03/2017 - 04/2020]: Procedure

1. Install the rear lower coil spring insulator LH to the rear shock absorber assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Depression

2. Secure SST in a vise.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09727-30022
3. Attach the hooks of each SST arm across the diameter of the coil spring.
   WARNING:

   • Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     *a	Rear Coil Spring Diameter

     Do not perform the work without checking to make sure that the claws of the hooks are securely engaged.

   • It could cause the hook to slip off and the spring to fly out, which could result in an injury.

   • Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     Do not install SST to the rear coil spring unless its top and bottom hook distance is set to the widest condition.

   • It could cause the hook to slip off and the spring to fly out, which could result in an injury.

   • Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     Do not install SST when the distances between the SST arms or the number of coils of the coil spring between the hooks are not the same.

   • It could cause the hook to slip off and the spring to fly out, which could result in an injury.
4. Install the stopper pins to the hooks of SST.
   WARNING:

   • Do not perform the work if the stopper pin is not securely installed.
   • It could cause the hook to slip off and the spring to fly out, which could result in an injury.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

5. Using SST, compress the coil spring.
   WARNING:

   • Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     While compressing the spring, if the front coil spring starts to bend into a bow shape, do not continue the work.

   • It could cause the hook to slip off and the spring to fly out, which could result in an injury.

   • Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     Do not compress the springs so far that the coils of the springs touch each other.

   • It could cause the hook to slip off and the spring to fly out, which could result in an injury.

   • Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     Do not use an impact wrench.

   • The threads may be stripped, or the sudden compression may result in slack that causes the hooks to slip off, causing the spring to fly out and possibly resulting in injury.

   • Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

     If a stopper pin touches the coil spring while using SST, remove the stopper pin and continue with the procedure.

   • If a stopper pin is removed, install SST as shown in the illustration.
   • If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.
   • SST: 09727-00110

6. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Depression

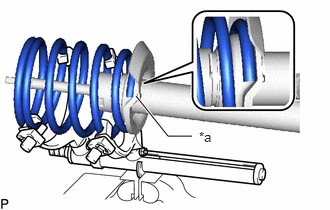

   Install the rear coil spring LH to the rear shock absorber assembly LH.

   NOTE:

   Make sure that the end of the rear coil spring is positioned in the depression of the rear lower coil spring insulator LH.

7. Install the rear No. 1 spring bumper LH to the rear support assembly suspension LH.
8. Install the rear upper coil spring insulator LH to the rear support assembly suspension LH as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Identification Mark
   *b	Protrusion

   NOTE:

   Align the identification mark on the rear support assembly suspension LH with the protrusion on the upper part of the rear upper coil spring insulator LH.

9. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install the rear support assembly suspension LH to the rear shock absorber assembly LH.

   NOTE:

   Match the shape of the rear shock absorber assembly support ring end to the shape of the rear support assembly suspension LH.

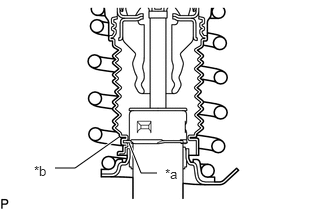

10. Turn the rear support assembly suspension LH 120° or more to engage the end of the rear upper coil spring insulator LH to the rear shock absorber assembly LH claws.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    *a	Rear Shock Absorber Assembly LH Claw
    *b	End of Rear Upper Coil Spring Insulator LH

    NOTE:

    • Make sure that the end of the rear upper coil spring insulator LH is engaged securely to the 3 rear shock absorber assembly LH claws.
    • Be careful not to deform the bellows of the rear upper coil spring insulator LH.
    • Keep the rear upper coil spring insulator LH free of oil and grease.
11. Temporarily tighten a new lock nut.

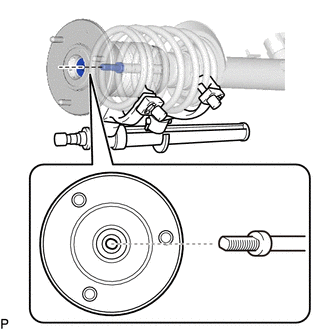

12. Adjust the rear support assembly suspension LH so that the bolts come to the positions as shown in the illustration, and remove SST from the rear coil spring.

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    *A	LH Side
    *B	RH Side
    *a	Rear Shock Absorber Assembly LH Bushing Large-diameter Side
    *b	Rear Shock Absorber Assembly LH Bushing Small-diameter Side
    *c	Front Suspension Support Assembly LH Stud Bolt
    *d	0°+/-2°
    	Front of the Vehicle
    	Outside of the Vehicle

    NOTE:

    • Do not use an impact wrench. It will damage SST.
    • Make sure that the width across flat on the rear shock absorber piston rod end is located parallel to the rear shock absorber bushing.
    • Make sure of the direction of the rear suspension support assembly when removing SST.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Temporarily tighten the washer and rear shock absorber with coil spring with a new nut.

2. Temporarily tighten the rear suspension spring support reinforcement and rear shock absorber with coil spring with the 3 nuts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

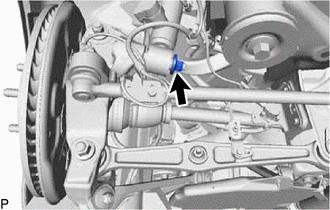

1. Connect the wire harness with the connector and nut.

   Torque: 6.0 N.m (61 kgf/cm, 53 in.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

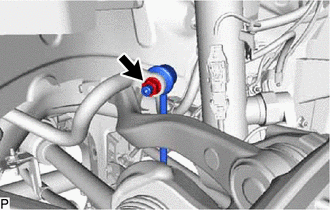

1. Temporarily tighten the rear stabilizer link assembly LH to the rear stabilizer bar with the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

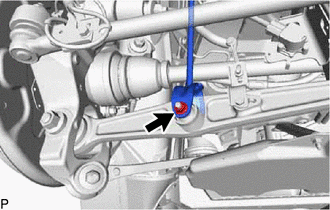

2. Temporarily tighten the rear stabilizer link assembly LH to the rear No. 2 suspension arm assembly LH with the bolt and nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

See step  7

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Fully tighten the nut.

   Torque: 110 N.m (1122 kgf/cm, 81 ft.lbf)

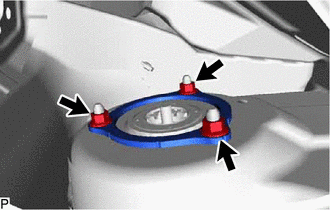

2. Fully tighten the 3 nuts.

   Torque: 40 N.m (408 kgf/cm, 30 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Fully tighten the lock nut.

   Torque: 27.5 N.m (280 kgf/cm, 20 ft.lbf)

   NOTE:

   Perform this step only when the rear shock absorber with coil spring has been disassembled.

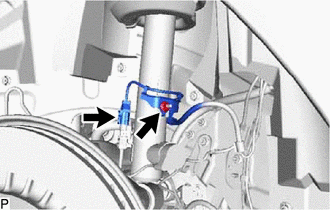

1. Fully tighten the nut.

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud bolt.

   Torque: 89 N.m (908 kgf/cm, 66 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Fully tighten the nut.

   Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to INSTALLATION [03/2017 - 05/2023]

1. Install the No. 2 quarter service hole cover LH with the 3 bolts and clip.

   Torque: 12.5 N.m (127 kgf/cm, 9 ft.lbf)

Refer to INSTALLATION [03/2017 - ]

Refer to ADJUSTMENT [03/2017 - 04/2020]

Refer to ADJUSTMENT [03/2017 - ]

Refer to CALIBRATION [03/2017 - 05/2023]

Refer to CALIBRATION [03/2017 - 09/2018] , or refer to CALIBRATION [09/2018 - ]
