Components [04/2020 - ]

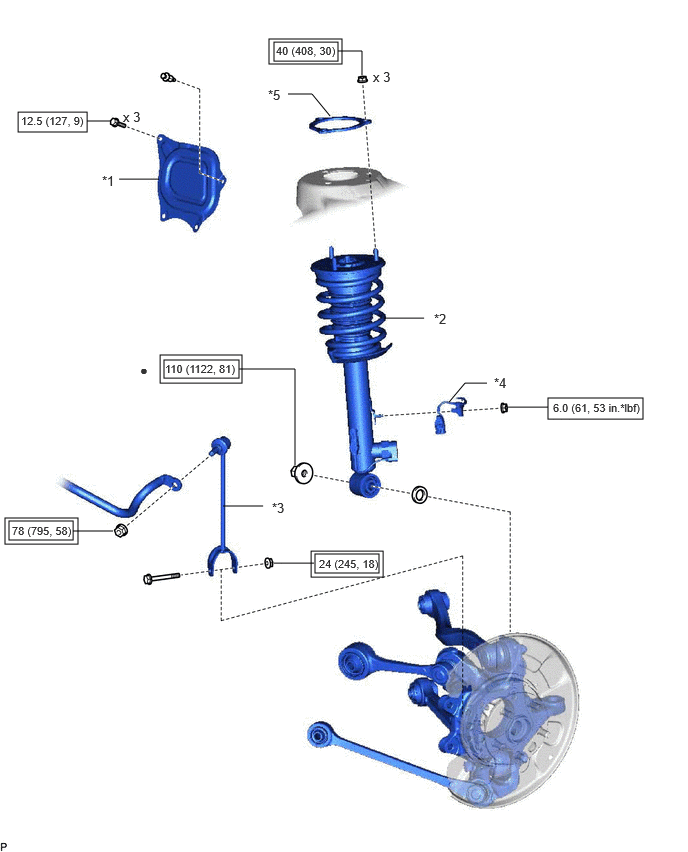

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications [04/2020 - ] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 2 QUARTER SERVICE HOLE COVER LH	*2	REAR SHOCK ABSORBER WITH COIL SPRING
*3	REAR STABILIZER LINK ASSEMBLY LH	*4	WIRE HARNESS
*5	REAR SUSPENSION SPRING SUPPORT REINFORCEMENT	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-

Fig 2: Rear Shock Absorber Replacement Components With Torque Specifications [04/2020 - ] (2 Of 2)

*1	REAR SHOCK ABSORBER ASSEMBLY LH	*2	REAR SUPPORT ASSEMBLY SUSPENSION LH
*3	REAR UPPER COIL SPRING INSULATOR LH	*4	REAR NO. 1 SPRING BUMPER LH
*5	REAR COIL SPRING LH	*6	REAR LOWER COIL SPRING INSULATOR LH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	•	Non-reusable part
