Components [03/2017 - 04/2020]

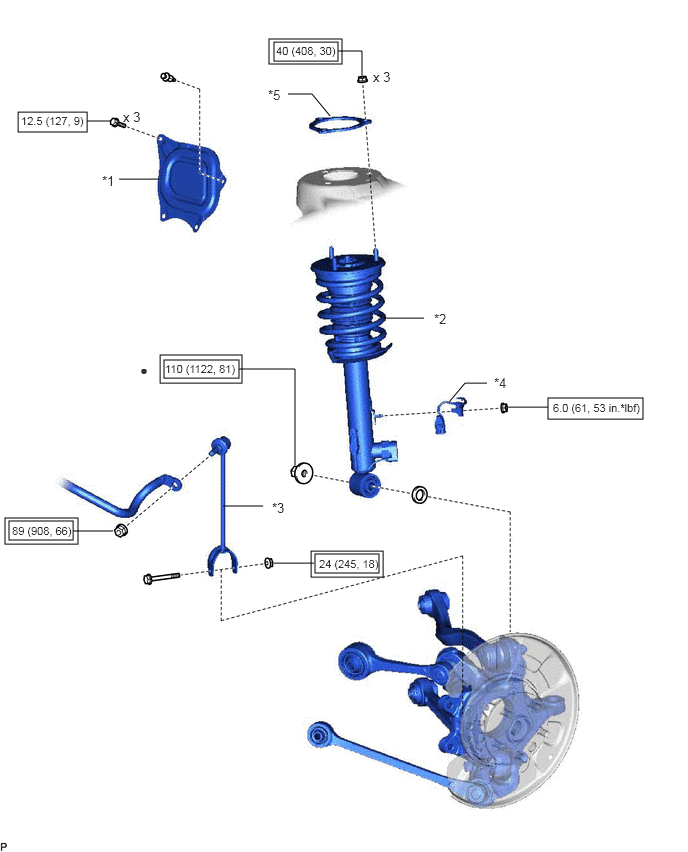

Fig 1: Rear Shock Absorber Replacement Components With Torque Specifications [03/2017 - 04/2020] (1 Of 2)
| *1 | NO. 2 QUARTER SERVICE HOLE COVER LH | *2 | REAR SHOCK ABSORBER WITH COIL SPRING |
| *3 | REAR STABILIZER LINK ASSEMBLY LH | *4 | WIRE HARNESS |
| *5 | REAR SUSPENSION SPRING SUPPORT REINFORCEMENT | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |

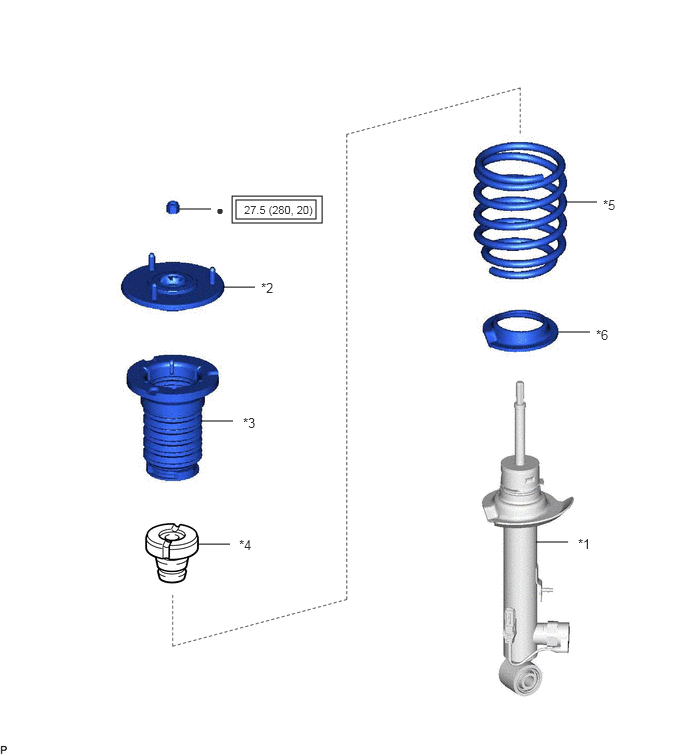

Fig 2: Rear Shock Absorber Replacement Components With Torque Specifications [03/2017 - 04/2020] (2 Of 2)
| *1 | REAR SHOCK ABSORBER ASSEMBLY LH | *2 | REAR SUPPORT ASSEMBLY SUSPENSION LH |
| *3 | REAR UPPER COIL SPRING INSULATOR LH | *4 | REAR NO. 1 SPRING BUMPER LH |
| *5 | REAR COIL SPRING LH | *6 | REAR LOWER COIL SPRING INSULATOR LH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf) | • | Non-reusable part |
