Removal [03/2017 - 05/2023]: Procedure

Refer to REMOVAL [03/2017 - 05/2023]

Refer to PROCEDURE - Step 1

1. Remove the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install 2 SST (spacer B) onto the lower control arm assembly LH so that there is a space of approximately 1 mm (0.0394 in.) between the arm and spacers.
   • SST: 09960-20010
     1. 09961-02060

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

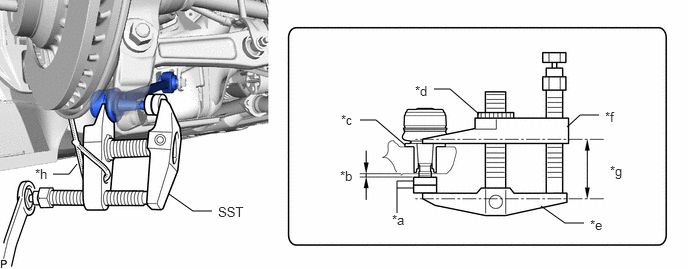

   *a	SST (Spacer B)	*b	1 mm (0.0394 in.)
   *c	Spacer	*d	Center Nut
   *e	Body	*f	Claw
   *g	Parallel	*h	String

   NOTE:

   • Make sure to install the spacers (SST spacer A) as the rear axle carrier sub-assembly LH spacer may shift.
   • As SST may become damaged, make sure the space between the arm and spacers is not 1 mm (0.0394 in.) or less.
3. Using SST, disconnect the lower control arm assembly LH from the rear axle carrier sub-assembly LH.
   • SST: 09960-20010
     1. 09961-02010
   NOTE:

   • Apply molybdenum grease to the bolt threads and end of the SST bolt.
   • Do not damage the dust cover.
   • As the dust cover may be damaged, adjust SST with the center nut so that the body and claw are parallel.
   • Make sure to tie the string of SST to the vehicle to prevent SST from dropping.

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the bolt, nut and lower control arm assembly LH.

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the bolt and nut, disconnect rear stabilizer link assembly LH from the rear No. 2 suspension arm assembly LH.

1. Remove the bolt and disconnect rear height control sensor sub-assembly LH from the rear No. 2 suspension arm assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

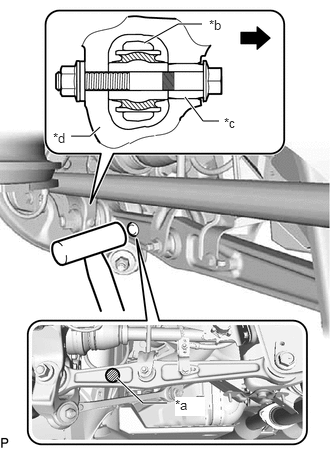

1. Using a plastic-faced hammer or equivalent, strike the part labeled A from the rear of the vehicle to maintain the clearance at the slide pin area.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	A
   *b	Arm
   *c	Slide Pin
   *d	Axle Carrier
   	Front of the Vehicle

   NOTE:

   Be careful not to damage the arm.

2. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the nut, bolt and washer.

3. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove the nut, rear No. 2 suspension toe adjust plate, rear suspension arm attachment sub-assembly and rear No. 2 suspension arm assembly LH.
