Removal [04/2020 - ]: Procedure

  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [03/2017 - ]

  2. REMOVE SUSPENSION TOWER DAMPER

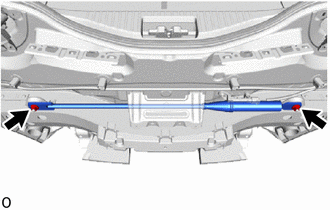

    1. Remove the 2 nuts and rear suspension tower damper assembly.
      NOTE:

      Do not compress or extend the rear suspension tower damper assembly.

      GTY957654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
