Components [04/2020 - ]

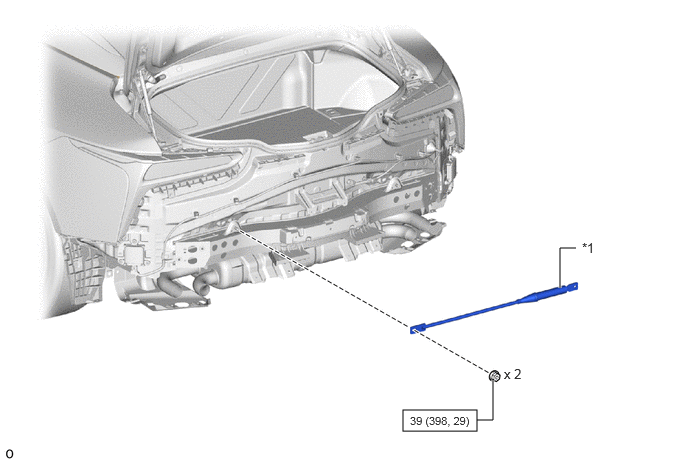

Fig 1: Performance Damper Replacement Components With Torque Specifications
GTY958527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SUSPENSION TOWER DAMPER - -
N.m (kgf/cm, ft.lbf): Specified torque - -
