Installation [03/2017 - 05/2023]: Procedure

INSTALL FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Seat)

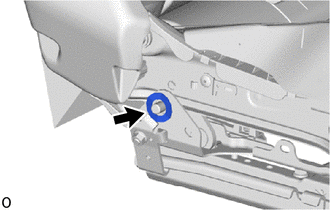

Install the front seat belt anchor plate.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

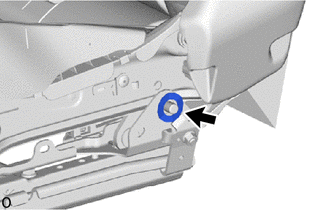

Install the front seat inner belt assembly LH with the nut.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protruding Part

Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

NOTE:

Do not allow the anchor part of the front seat inner belt assembly LH to overlap the protruding part of the front seat adjuster.

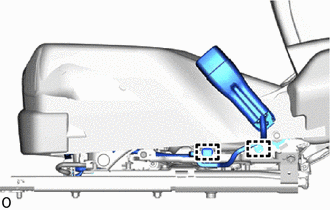

Attach the wire harness clamps.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

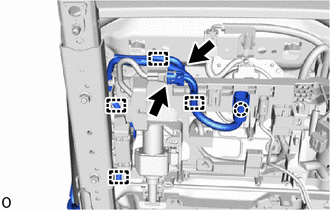

Attach the claw and install the connector to the front seat cushion wire harness holder LH.

INSTALL FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Seat)

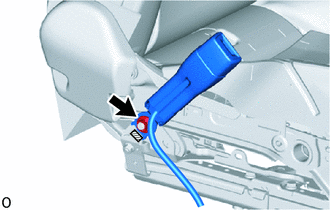

Install the front seat belt anchor plate.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

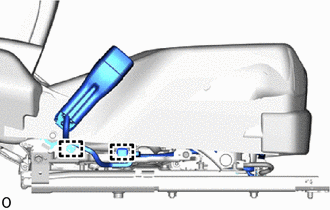

Install the front seat inner belt assembly RH with the nut.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protruding Part

Torque: 42 N.m (428 kgf/cm, 31 ft.lbf)

NOTE:

Do not allow the anchor part of the front seat inner belt assembly RH to overlap the protruding part of the front seat adjuster.

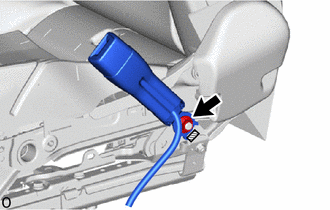

Attach the wire harness clamps.

Connect the 2 connectors.

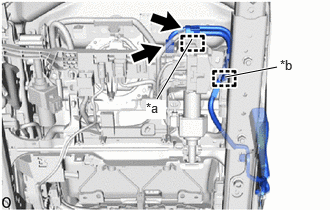

*a	Connector Clamp
*b	Wire Harness Clamp

INSTALL FRONT SEAT ASSEMBLY
Refer to INSTALLATION [03/2017 - 04/2020] , or refer to INSTALLATION [04/2020 - 05/2023]
INITIALIZATION OF SEAT ECU
Refer to PROCEDURE - Step 2
PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK (for Front Passenger Seat)
Refer to INITIALIZATION [03/2017 - ]
INSPECT SEAT BELT WARNING SYSTEM
Refer to ON-VEHICLE INSPECTION [03/2017 - 04/2020] , or refer to ON-VEHICLE INSPECTION [04/2020 - 05/2023]
