Installation [03/2017 - ]: Procedure

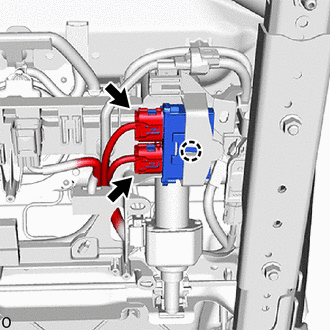

1. Attach the claw to install the occupant detection ECU.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   If the occupant detection ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the occupant detection ECU with a new one.

2. Connect the 2 connectors.
   NOTE:

   When installing the occupant detection ECU, make sure that the SRS wiring does not interfere with or is pinched between other parts.

HINT:

Use the same procedure as for the LH side.

Refer to INSTALLATION [03/2017 - 04/2020] , or refer to INSTALLATION [04/2020 - 05/2023] , or refer to INSTALLATION [05/2023 - ]

Refer to INITIALIZATION [03/2017 - ]

Refer to DTC CHECK / CLEAR [03/2017 - 04/2020] , or refer to DTC CHECK / CLEAR [04/2020 - ]

Refer to DIAGNOSTIC TROUBLE CODE CHART [03/2017 - 04/2020] , or refer to DIAGNOSTIC TROUBLE CODE CHART [04/2020 - 05/2023] , or refer to DIAGNOSTIC TROUBLE CODE CHART [05/2023 - ]
