DTC B1835/58: Short in Curtain Shield Squib LH Circuit; DTC B1836/58: Open in Curtain Shield Squib LH Circuit; DTC B1837/58: Short to GND in Curtain Shield Squib LH Circuit; DTC B1838/58: Short to B+ in Curtain Shield Squib LH Circuit [03/2017 - 04/2020]: Procedure

  1. CHECK CONNECTORS
    1. Turn the engine switch off.

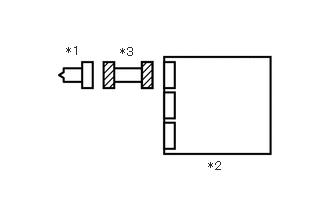

      GTY772937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Curtain Shield Airbag Assembly LH
      *2 Airbag ECU Assembly
      *3 Floor Wire
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the curtain shield airbag assembly LH and airbag ECU assembly.

      OK

      The connectors are properly connected.

      HINT:

      If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.

    4. Disconnect the connectors from the curtain shield airbag assembly LH and airbag ECU assembly.
    5. Check that the terminals of the connectors are not deformed or damaged.

      OK

      The terminals are not deformed or damaged.

    6. Check that the floor wire connector (on the curtain shield airbag assembly LH side) is not loose, deformed or damaged.

      OK

      The connector locking button is not disengaged, and the claw of the lock is not deformed or damaged.

    7. Check that the short springs of the activation prevention mechanism of the floor wire connector are not deformed or damaged.

      OK

      The short springs are not deformed or damaged.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FLOOR WIRE

    Result:

    OK

    See step  2

  2. CHECK CURTAIN SHIELD AIRBAG ASSEMBLY LH
    1. Connect the connector to the airbag ECU assembly.

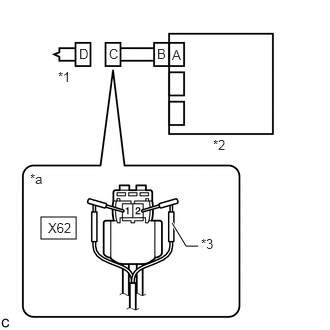

      GTY810395Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Curtain Shield Airbag Assembly LH
      *2 Airbag ECU Assembly
      *3 SST
      *a Front view of wire harness connector
      (to Curtain Shield Airbag Assembly LH)
    2. Connect the white wire side of SST (resistance: 2.1 Ω) to connector C.
      WARNING:

      Never connect the tester to the curtain shield airbag assembly LH for measurement, as this may lead to a serious injury due to airbag deployment.

      NOTE:
      • Do not forcibly insert SST into the terminals of the connector when connecting SST.
      • Insert SST straight into the terminals of the connector.
      • SST: 09843-18061
    3. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    4. Turn the engine switch on (IG), and wait for at least 60 seconds.
    5. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [03/2017 - 04/2020]

      Body Electrical > SRS Airbag > Clear DTCs

    6. Turn the engine switch off.
    7. Turn the engine switch on (IG), and wait for at least 60 seconds.
    8. Check for DTCs.

      Refer to DTC CHECK / CLEAR [03/2017 - 04/2020]

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Proceed to
      DTC B1835/58, B1836/58, B1837/58 or B1838/58 is not output
      DTC B1835/58, B1836/58, B1837/58 or B1838/58 is output

      HINT:

      Codes other than DTC B1835/58, B1836/58, B1837/58 and B1838/58 may be output at this time, but they are not related to this check.

    9. Turn the engine switch off.
    10. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    11. Disconnect SST from connector C.

    Result:

    DTC B1835/58, B1836/58, B1837/58 or B1838/58 is not output

    REPLACE CURTAIN SHIELD AIRBAG ASSEMBLY LH. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    DTC B1835/58, B1836/58, B1837/58 or B1838/58 is output

    See step  3

  3. CHECK FLOOR WIRE
    1. Disconnect the floor wire from the airbag ECU assembly.

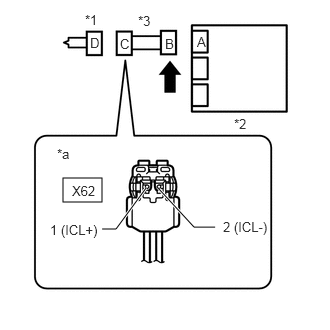

      GTY829945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Curtain Shield Airbag Assembly LH
      *2 Airbag ECU Assembly
      *3 Floor Wire
      *a Front view of wire harness connector
      (to Curtain Shield Airbag Assembly LH)
      Release the activation prevention mechanism
    2. Check for a short to B+ in the circuit.
      1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
      2. Turn the engine switch on (IG).
      3. Measure the voltage according to the value(s) in the table below.

        Standard Voltage

        Tester Connection Switch Condition Specified Condition
        X62-1 (ICL+) - Body ground Engine switch on (IG) Below 1 V
        X62-2 (ICL-) - Body ground Engine switch on (IG) Below 1 V
      4. Turn the engine switch off.
      5. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Check for an open in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        X62-1 (ICL+) - X62-2 (ICL-) Always Below 1 Ω
    4. Check for a short to ground in the circuit.
      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        X62-1 (ICL+) - Body ground Always 1 MΩ or higher
        X62-2 (ICL-) - Body ground Always 1 MΩ or higher
    5. Check for a short in the circuit.
      1. Release the activation prevention mechanism built into connector B.

        Refer to SYSTEM DESCRIPTION [03/2017 - ]

      2. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection Condition Specified Condition
        X62-1 (ICL+) - X62-2 (ICL-) Always 1 MΩ or higher
      3. Restore the released activation prevention mechanism of connector B to the original condition.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE FLOOR WIRE

    Result:

    OK

    See step  4

  4. CHECK DTC
    1. Connect the connectors to the curtain shield airbag assembly LH and airbag ECU assembly.

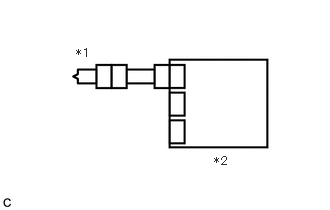

      GTY801391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Curtain Shield Airbag Assembly LH
      *2 Airbag ECU Assembly
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Turn the engine switch on (IG), and wait for at least 60 seconds.
    4. Clear the DTCs.

      Refer to DTC CHECK / CLEAR [03/2017 - 04/2020]

      Body Electrical > SRS Airbag > Clear DTCs

    5. Turn the engine switch off.
    6. Turn the engine switch on (IG), and wait for at least 60 seconds.
    7. Check for DTCs.

      Refer to DTC CHECK / CLEAR [03/2017 - 04/2020]

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Proceed to
      DTC B1835/58, B1836/58, B1837/58 or B1838/58 is not output
      DTC B1835/58, B1836/58, B1837/58 or B1838/58 is output

      HINT:

      Codes other than DTC B1835/58, B1836/58, B1837/58 and B1838/58 may be output at this time, but they are not related to this check.

    Result:

    DTC B1835/58, B1836/58, B1837/58 or B1838/58 is not output

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [03/2017 - 04/2020]

    Result:

    DTC B1835/58, B1836/58, B1837/58 or B1838/58 is output

    REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [03/2017 - 05/2023]
