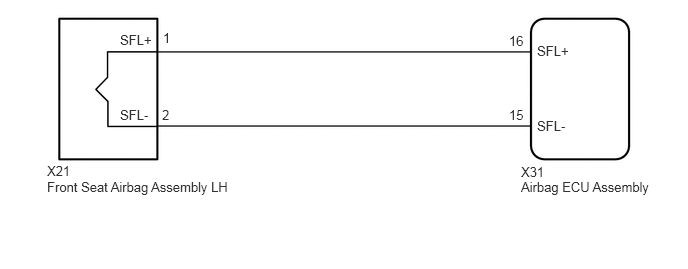

DTC B1825/56: Short in Side Squib LH Circuit; DTC B1826/56: Open in Side Squib LH Circuit; DTC B1827/56: Short to GND in Side Squib LH Circuit; DTC B1828/56: Short to B+ in Side Squib LH Circuit [03/2017 - 04/2020]: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
