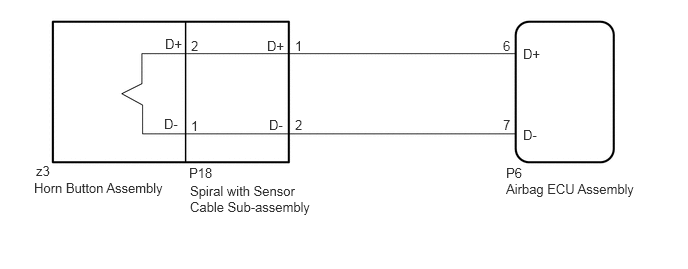

DTC B1800/51: Short in Driver Side Squib Circuit; DTC B1801/51: Open in Driver Side Squib Circuit; DTC B1802/51: Short to GND in Driver Side Squib Circuit; DTC B1803/51: Short to B+ in Driver Side Squib Circuit [03/2017 - 04/2020]: Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
