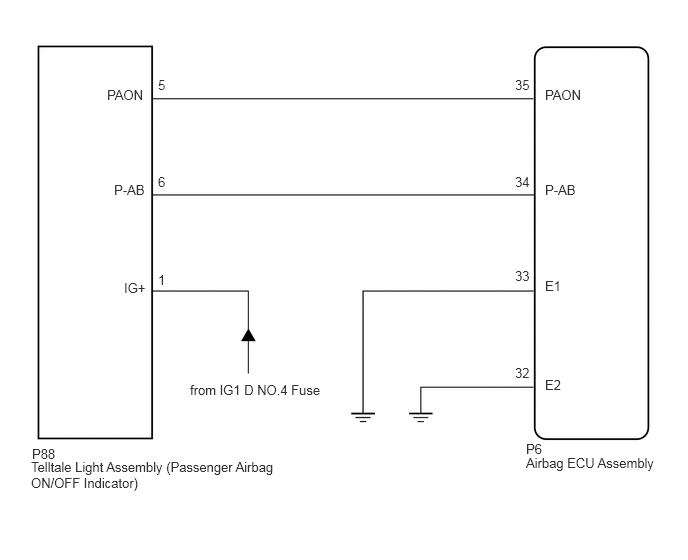

DTC B1660: P Seat Airbag Active Mode Indicator [04/2020 - 05/2023]: Wiring Diagram

GTY776566

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
