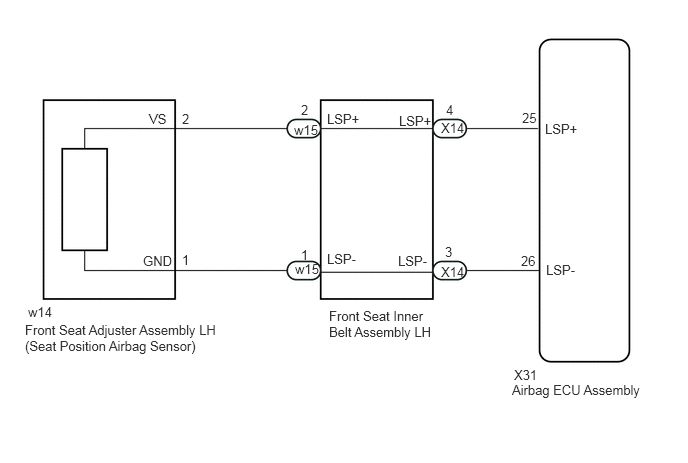

DTC B1653/35: Seat Position Airbag Sensor Circuit Malfunction [03/2017 - 04/2020]: Wiring Diagram

GTY956147

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
