DTC B162B/81: Side Airbag Sensor Assembly No. 2 Lost Communication (RH); DTC B162C/85: Side Airbag Sensor Assembly No. 2 Initialization Error (RH) [03/2017 - 04/2020]: Procedure
- CHECK CONNECTION OF CONNECTORS
- Turn the engine switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Check that the connectors are properly connected to the airbag ECU assembly and side airbag sensor assembly RH.
Result
Proceed to The connectors are properly connected The connectors are not properly connected
Result:
The connectors are not properly connected
CONNECT CONNECTORS PROPERLY
Result:
The connectors are properly connected
See step 2
- CHECK CONNECTORS
- Disconnect the connectors from the airbag ECU assembly and side airbag sensor assembly RH.
- Check that the connectors (on the airbag ECU assembly side and side airbag sensor assembly RH side) are not damaged.
*1 Side Airbag Sensor Assembly RH *2 Airbag ECU Assembly *3 Floor Wire Result
Proceed to The connectors are not deformed or damaged The connectors are deformed or damaged
Result:
The connectors are deformed or damaged
REPLACE FLOOR WIRE
Result:
The connectors are not deformed or damaged
See step 3
- CHECK SIDE AIRBAG SENSOR ASSEMBLY RH
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

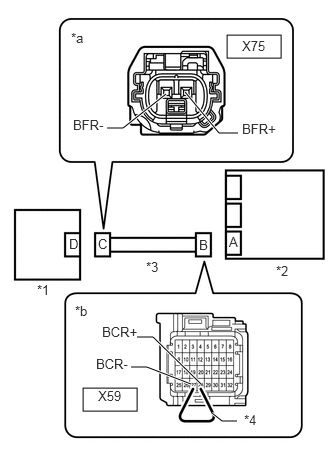

*1 Side Airbag Sensor Assembly RH *2 Airbag ECU Assembly *3 Floor Wire *4 Service Wire *a Front view of wire harness connector
(to Side Airbag Sensor Assembly RH)*b Front view of wire harness connector
(to Airbag ECU Assembly) - Turn the engine switch on (IG).
- Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Switch Condition Specified Condition X75-2 (BFR+) - Body ground Engine switch on (IG) Below 1 V X75-1 (BFR-) - Body ground Engine switch on (IG) Below 1 V - Turn the engine switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Using a service wire, connect terminals 28 (BCR+) and 27 (BCR-) of connector B.NOTE:
Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition X75-2 (BFR+) - X75-1 (BFR-) Always Below 1 Ω - Disconnect the service wire from connector B.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Condition X75-2 (BFR+) - X75-1 (BFR-) Always 1 MΩ or higher X75-2 (BFR+) - Body ground Always 1 MΩ or higher X75-1 (BFR-) - Body ground Always 1 MΩ or higher Result
Proceed to OK NG
Result:
NG
REPLACE FLOOR WIRE
Result:
OK
See step 4
- Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- CHECK SIDE AIRBAG SENSOR ASSEMBLY RH
- Connect the connectors to the airbag ECU assembly.
- Interchange the side airbag sensor RH with LH and connect the connectors to them.
*1 Side Airbag Sensor Assembly LH *2 Airbag ECU Assembly - Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
- Turn the engine switch on (IG), and wait for at least 60 seconds.
- Clear the DTCs stored in memory.
Refer to DTC CHECK / CLEAR [03/2017 - 04/2020]
Body Electrical > SRS Airbag > Clear DTCs
- Turn the engine switch off.
- Turn the engine switch on (IG), and wait for at least 60 seconds.
- Check for DTCs.
Refer to DTC CHECK / CLEAR [03/2017 - 04/2020]
Body Electrical > SRS Airbag > Trouble Codes
Result
Result Proceed to DTC B162B/81 or B162C/85 is output A DTC B163B/82 or B163C/86 is output B DTC B162B/81, B162C/85, B163B/82 and B163C/86 are not output C HINT:
Codes other than DTC B162B/81, B162C/85, B163B/82 and B163C/86 may be output at this time, but they are not related to this check.
- Turn the engine switch off.
- Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
- Return the side airbag sensor LH and RH to their original positions and connect the connectors to them.
Result:
A
REPLACE AIRBAG ECU ASSEMBLY. Refer to REMOVAL [03/2017 - 05/2023]
Result:
B
REPLACE SIDE AIRBAG SENSOR ASSEMBLY RH. Refer to REMOVAL [03/2017 - 05/2023]
Result:
C
USE SIMULATION METHOD TO CHECK. Refer to HOW TO PROCEED WITH TROUBLESHOOTING [03/2017 - 04/2020]
