DTC B1612/83: Lost Communication with Front Airbag Sensor RH; DTC B1613/83: Front Airbag Sensor RH Initialization Incomplete [03/2017 - 04/2020]: Procedure

  1. CHECK CONNECTION OF CONNECTORS
    1. Turn the engine switch off.
    2. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    3. Check that the connectors are properly connected to the airbag ECU assembly and front airbag sensor RH.

      Result

      Proceed to
      The connectors are properly connected
      The connectors are not properly connected

    Result:

    The connectors are not properly connected

    CONNECT CONNECTORS PROPERLY

    Result:

    The connectors are properly connected

    See step  2

  2. CHECK CONNECTORS
    1. Disconnect the connectors from the airbag ECU assembly and front airbag sensor RH.
    2. Check that the connectors (on the airbag ECU assembly side and front airbag sensor RH side) are not damaged.
      GTY519579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor RH
      *2 Airbag ECU Assembly
      *3 Engine Room Main Wire
      *4 Instrument Panel Wire

      Result

      Proceed to
      The connectors are not deformed or damaged
      The connectors are deformed or damaged

    Result:

    The connectors are deformed or damaged

    REPLACE INSTRUMENT PANEL WIRE OR ENGINE ROOM MAIN WIRE

    Result:

    The connectors are not deformed or damaged

    See step  3

  3. CHECK FRONT AIRBAG SENSOR RH CIRCUIT
    1. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.

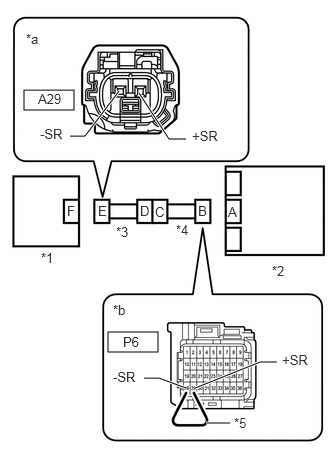

      GTY812429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor RH
      *2 Airbag ECU Assembly
      *3 Engine Room Main Wire
      *4 Instrument Panel Wire
      *5 Service Wire
      *a Front view of wire harness connector
      (to Front Airbag Sensor RH)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)
    2. Turn the engine switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A29-2 (+SR) - Body ground Engine switch on (IG) Below 1 V
      A29-1 (-SR) - Body ground Engine switch on (IG) Below 1 V
    4. Turn the engine switch off.
    5. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    6. Using a service wire, connect terminals 29 (+SR) and 28 (-SR) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    7. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A29-2 (+SR) - A29-1 (-SR) Always Below 1 Ω
    8. Disconnect the service wire from connector B.
    9. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A29-2 (+SR) - A29-1 (-SR) Always 1 MΩ or higher
      A29-2 (+SR) - Body ground Always 1 MΩ or higher
      A29-1 (-SR) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  5

    Result:

    OK

    See step  4

  4. CHECK FRONT AIRBAG SENSOR RH
    1. Connect the connectors to the airbag ECU assembly.
      GTY521469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag ECU assembly
    2. Interchange the front airbag sensor RH with LH and connect the connectors to them.
    3. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    4. Turn the engine switch on (IG), and wait for at least 60 seconds.
    5. Clear the DTCs stored in memory.

      Refer to DTC CHECK / CLEAR [03/2017 - 04/2020]

      Body Electrical > SRS Airbag > Clear DTCs

    6. Turn the engine switch off.
    7. Turn the engine switch on (IG), and wait for at least 60 seconds.
    8. Check for DTCs.

      Refer to DTC CHECK / CLEAR [03/2017 - 04/2020]

      Body Electrical > SRS Airbag > Trouble Codes

      Result

      Proceed to
      DTC B1612/83 or B1613/83 is output
      DTC B1617/84 or B1618/84 is output
      DTC B1612/83, B1613/83, B1617/84 and B1618/84 are not output

      HINT:

      Codes other than DTC B1612/83, B1613/83, B1617/84 and B1618/84 may be output at this time, but they are not related to this check.

    9. Turn the engine switch off.
    10. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    11. Return the front airbag sensor LH and RH to their original positions and connect the connectors to them.

    Result:

    DTC B1612/83 or B1613/83 is output

    REPLACE AIRBAG ECU ASSEMBLY. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    DTC B1617/84 or B1618/84 is output

    REPLACE FRONT AIRBAG SENSOR RH. Refer to  REMOVAL [03/2017 - 05/2023]

    Result:

    DTC B1612/83, B1613/83, B1617/84 and B1618/84 are not output

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [03/2017 - 04/2020]

  5. CHECK INSTRUMENT PANEL WIRE
    1. Disconnect the instrument panel wire connector from the engine room main wire.

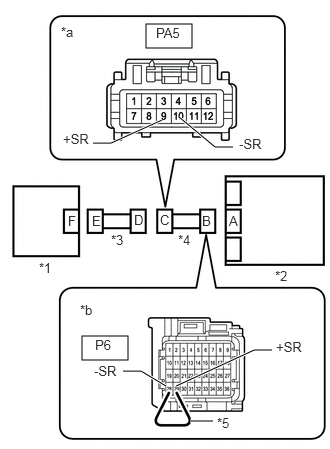

      GTY818054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor RH
      *2 Airbag ECU Assembly
      *3 Engine Room Main Wire
      *4 Instrument Panel Wire
      *5 Service Wire
      *a Front view of wire harness connector
      (to Engine Room Main Wire)
      *b Front view of wire harness connector
      (to Airbag ECU Assembly)
    2. Connect the cable to the negative (-) battery terminal, and wait for at least 2 seconds.
    3. Turn the engine switch on (IG).
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      PA5-9 (+SR) - Body ground Engine switch on (IG) Below 1 V
      PA5-10 (-SR) - Body ground Engine switch on (IG) Below 1 V
    5. Turn the engine switch off.
    6. Disconnect the cable from the negative (-) battery terminal, and wait for at least 90 seconds.
    7. Using a service wire, connect terminals 29 (+SR) and 28 (-SR) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting a service wire.

    8. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      PA5-9 (+SR) - PA5-10 (-SR) Always Below 1 Ω
    9. Disconnect the service wire from connector B.
    10. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      PA5-9 (+SR) - PA5-10 (-SR) Always 1 MΩ or higher
      PA5-9 (+SR) - Body ground Always 1 MΩ or higher
      PA5-10 (-SR) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE ROOM MAIN WIRE

    Result:

    NG

    REPLACE INSTRUMENT PANEL WIRE
