Installation [05/2023 - ]: Procedure

1. Attach the guide.

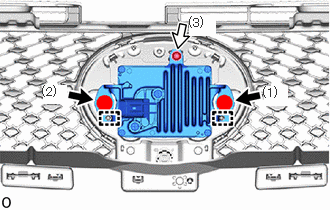

   Fig 1: Millimeter Wave Radar Sensor Assembly Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Bolt
   	Screw

2. Temporarily install the millimeter wave radar sensor assembly with the 2 bolts and screw.
3. Tighten the 2 bolts and screw in the order shown in the illustration.

   Bolt

   Torque: 2.5 N*m (25 kgf*cm, 22 in.*lbf)

Refer to INSTALLATION [05/2023 - ]

1. When the millimeter wave radar sensor assembly is replaced with a new one, adjustment of the radar sensor beam axis must be performed.

   HINT:

   Millimeter wave radar sensor assembly learning can be performed by using either Target Adjustment (Triangle Target) or Target Adjustment (Flat Surface Target) or Driving Adjustment.

   • Target Adjustment (Triangle Target):

     Refer to TARGET ADJUSTMENT (TRIANGLE TARGET) [05/2023 - ]

   • Target Adjustment (Flat Surface Target):

     Refer to TARGET ADJUSTMENT (FLAT SURFACE TARGET) [05/2023 - ]

   • Driving Adjustment:

     Refer to DRIVING ADJUSTMENT [05/2023 - ]
