Removal [03/2017 - ]: Procedure

Refer to REMOVAL [03/2017 - ]

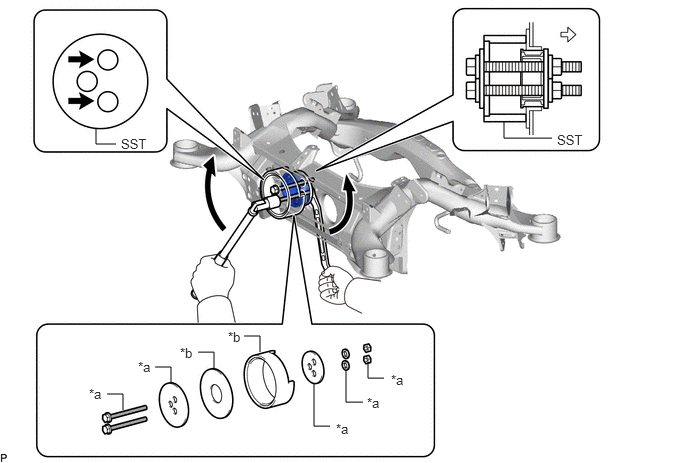

1. Using SST, remove the rear No. 1 differential mount cushion.
   • SST: 09570-24011
   • SST: 09570-60010

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	SST (09570-24011)	*b	SST (09570-60010)
   	SST bolt location		Front of the Vehicle

   NOTE:

   • Before using SST, apply grease to the SST bolts.
   • Be sure to use the correct combination of SST.
   • Do not tilt the bolts of SST.
   • Tighten the 2 bolts of SST so that they enter the 2 holes of the rear No. 1 differential mount cushion by an equal amount.

   HINT:

   Install the 2 SST bolts to the 2 SST holes as shown in the illustration.
