Electric Parking Brake System - Diagnostic Codes & Symptom Tests (Coupe)
>>
Electric Parking Brake System
>>
DTC C13A3: Open or Short Circuit in Lock Switch Circuit; DTC C13AB: Lock Switch Circuit Comparison [09/2018 - ]
>>

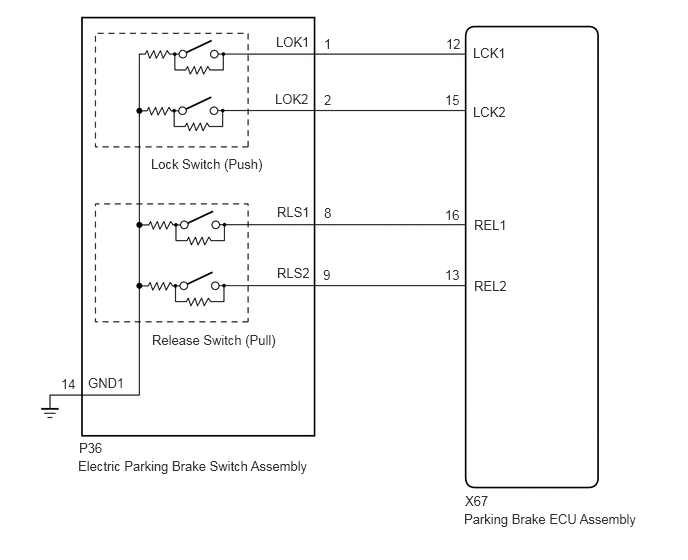

Wiring Diagram
DTC C13A3: Open or Short Circuit in Lock Switch Circuit; DTC C13AB: Lock Switch Circuit Comparison [09/2018 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
