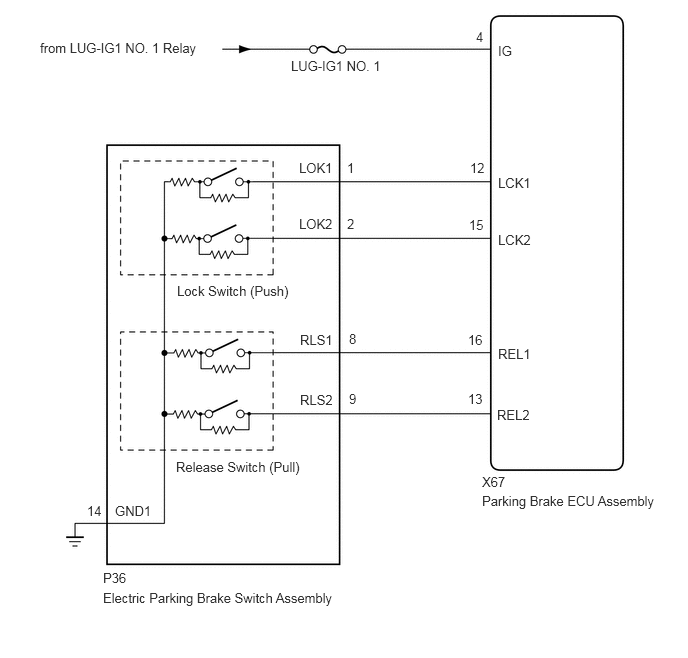

DTC C13A1: Short circuit in Power source circuit [09/2018 - ]: Wiring Diagram

GTY799608

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
