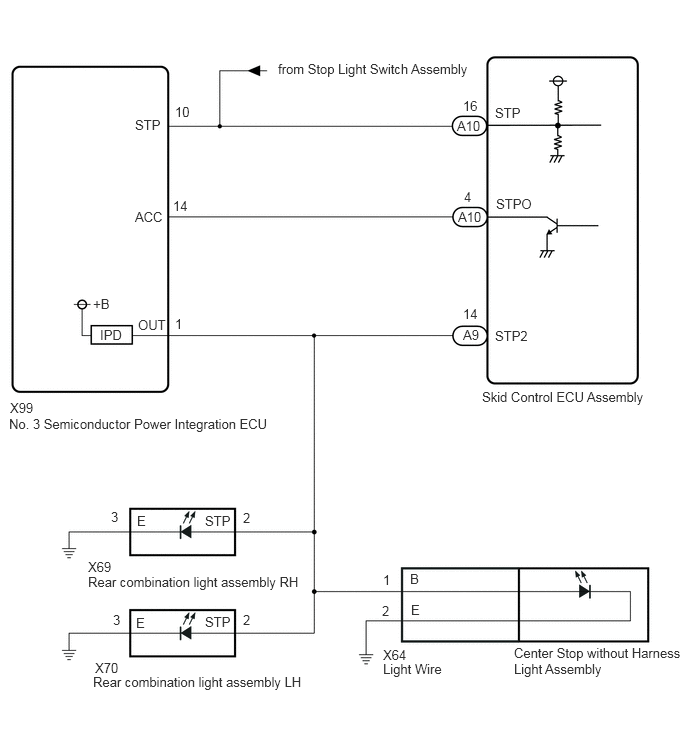

DTC C1380/15: Stop Light Control Relay Malfunction [03/2017 - 09/2018]: Wiring Diagram

GTY784249

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
