Electronically Controlled Brake System - Diagnostic Codes (Coupe) (1 Of 4)
>>
Electronically Controlled Brake System
>>
DTC C1231: Steering Angle Sensor Circuit [09/2018 - ]
>>

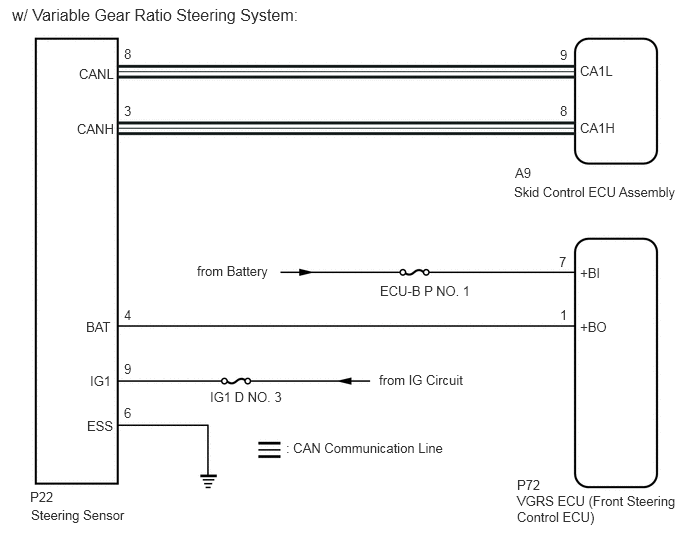

Wiring Diagram
DTC C1231: Steering Angle Sensor Circuit [09/2018 - ]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
