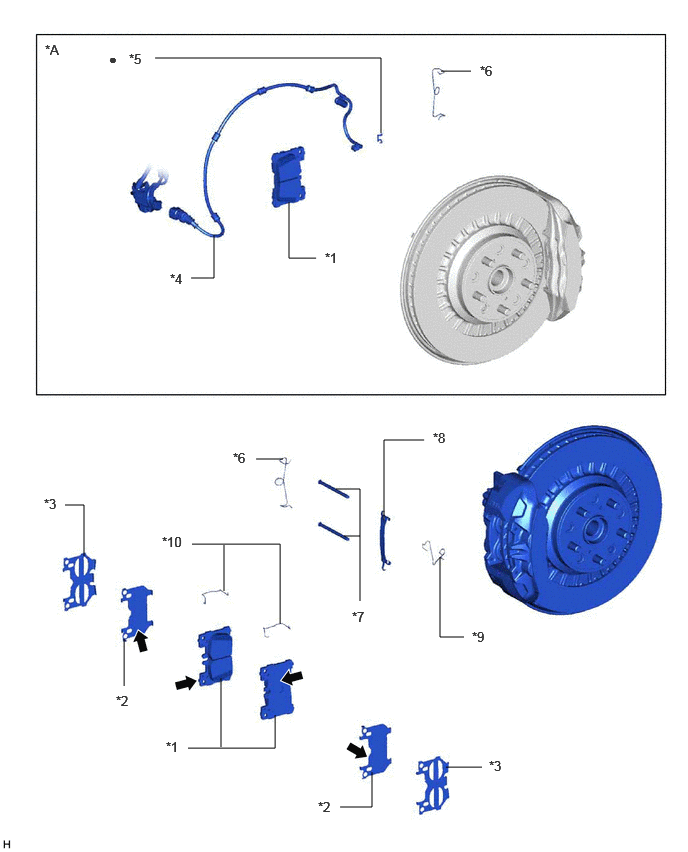

Components [03/2017 - ]
| *A | for RH Side | - | - |
| *1 | REAR DISC BRAKE PAD | *2 | NO. 1 ANTI-SQUEAL SHIM |
| *3 | NO. 2 ANTI-SQUEAL SHIM | *4 | PAD WEAR INDICATOR WIRE ASSEMBLY RH |
| *5 | PAD WEAR INDICATOR RETAINER | *6 | PIN HOLD CLIP |
| *7 | HOLE PIN | *8 | NO. 1 ANTI-RATTLE SPRING |
| *9 | ANTI-SQUEAL SPRING | *10 | INNER ANTI-RATTLE SPRING |
| • | Non-reusable part | Brake shim grease (Part No. 08887-80409) |
