Reassembly [03/2017 - ]: Procedure

HINT:

Tighten the rear disc brake bleeder plug after bleeding the system.

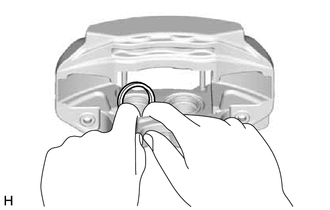

1. Apply lithium soap base glycol grease to the entire circumference of a 4 new piston seals.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Lithium soap base glycol grease

2. Install the 4 piston seals to the rear disc brake cylinder assembly LH.
   NOTE:

   Securely install the piston seal into the groove of the rear disc brake cylinder assembly LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Apply a light layer of lithium soap base glycol grease to the entire circumference of a 4 new cylinder boots.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

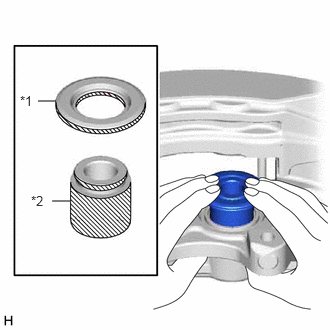

   *1	Cylinder Boot
   *2	Rear Disc Brake Piston
   	Lithium Soap Base Glycol Grease

2. Install the 4 cylinder boots to the rear disc brake piston.
   NOTE:

   Securely install the cylinder boot into the groove of the rear disc brake piston.

3. Apply a light layer of lithium soap base glycol grease to the contact surfaces of the 4 rear disc brake pistons, and install it to the rear disc brake cylinder assembly LH.
   NOTE:

   Do not forcibly install the rear disc brake piston into the rear disc brake cylinder assembly LH.

1. Install the 4 cylinder boots to the rear disc brake cylinder assembly LH as shown in the illustration.
   NOTE:

   • Securely install the cylinder boot into the groove of the rear disc brake cylinder assembly LH and rear disc brake piston.
   • Do not damage the cylinder boot.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

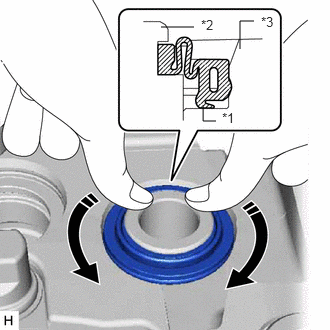

   *1	Cylinder Boot
   *2	Rear Disc Brake Piston
   *3	Rear Disc Brake Cylinder Assembly LH
