Components [03/2017 - 05/2023]

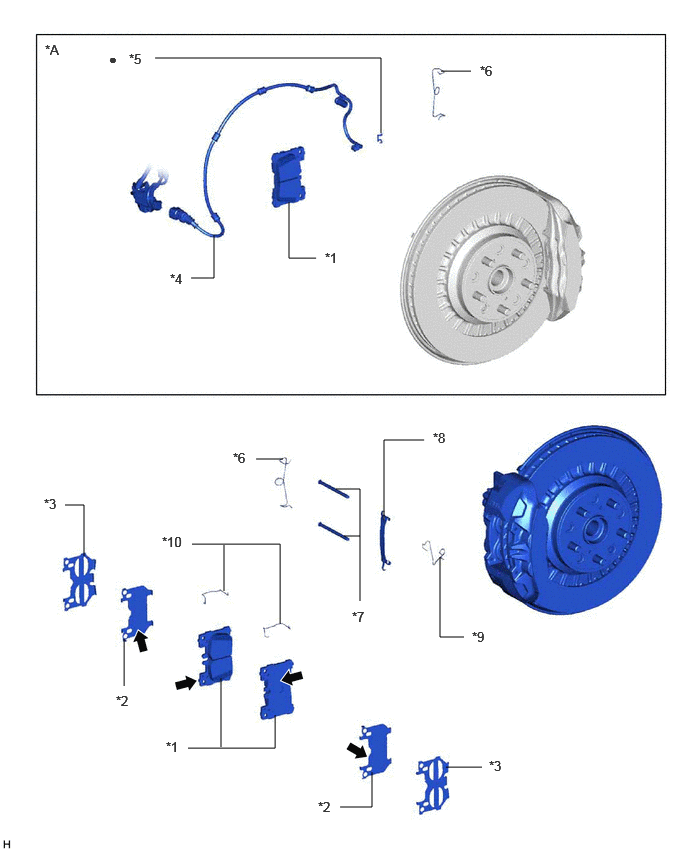

Fig 1: Rear Brake Replacement Components [03/2017 - 05/2023] (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for RH Side	-	-
*1	REAR DISC BRAKE PAD	*2	NO. 1 ANTI-SQUEAL SHIM
*3	NO. 2 ANTI-SQUEAL SHIM	*4	PAD WEAR INDICATOR WIRE ASSEMBLY RH
*5	PAD WEAR INDICATOR RETAINER	*6	PIN HOLD CLIP
*7	HOLE PIN	*8	NO. 1 ANTI-RATTLE SPRING
*9	ANTI-SQUEAL SPRING	*10	INNER ANTI-RATTLE SPRING
•	Non-reusable part		Brake shim grease (Part No. 08887-80409)

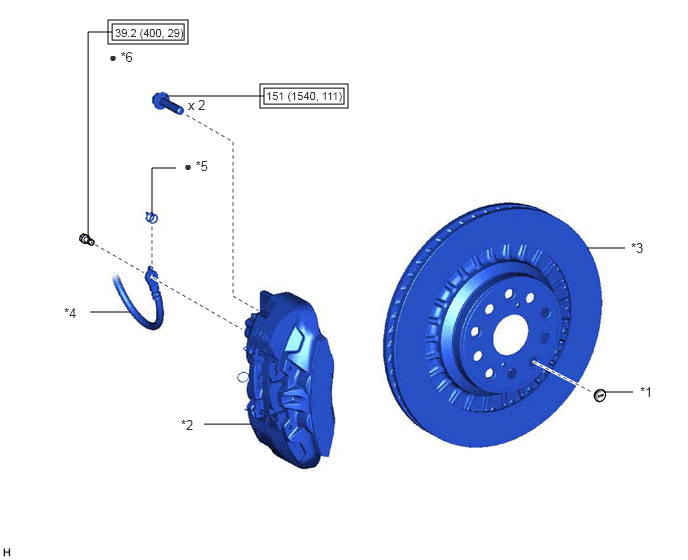

Fig 2: Rear Brake Replacement Components With Torque Specifications [03/2017 - 05/2023] (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	PARKING BRAKE SHOE ADJUSTING HOLE PLUG	*2	REAR DISC BRAKE CYLINDER ASSEMBLY LH
*3	REAR DISC LH	*4	REAR FLEXIBLE HOSE
*5	GASKET	*6	UNION BOLT
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	•	Non-reusable part

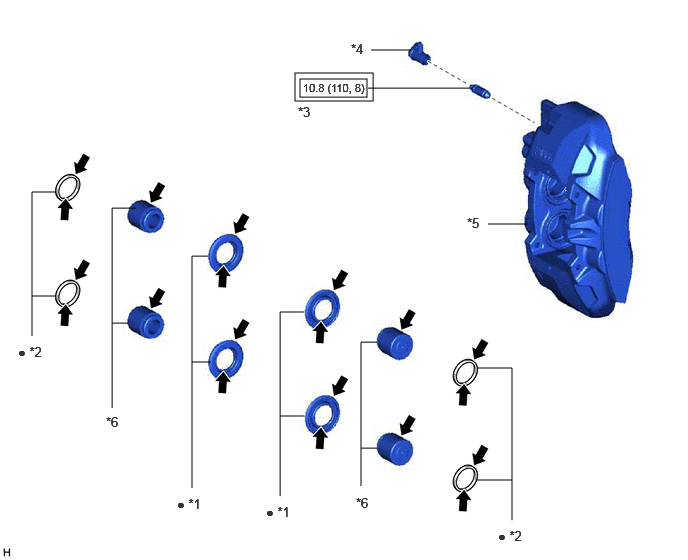

Fig 3: Rear Brake Replacement Components With Torque Specifications [03/2017 - 05/2023] (3 Of 3)

*1	CYLINDER BOOT	*2	PISTON SEAL
*3	REAR DISC BRAKE BLEEDER PLUG	*4	REAR DISC BRAKE BLEEDER PLUG CAP
*5	REAR DISC BRAKE CYLINDER ASSEMBLY LH	*6	REAR DISC BRAKE PISTON
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	•	Non-reusable part
	Lithium soap base glycol grease	-	-
