Rear Brake Flexible Hose
>>
Components [03/2017 - ]
Components [03/2017 - ]

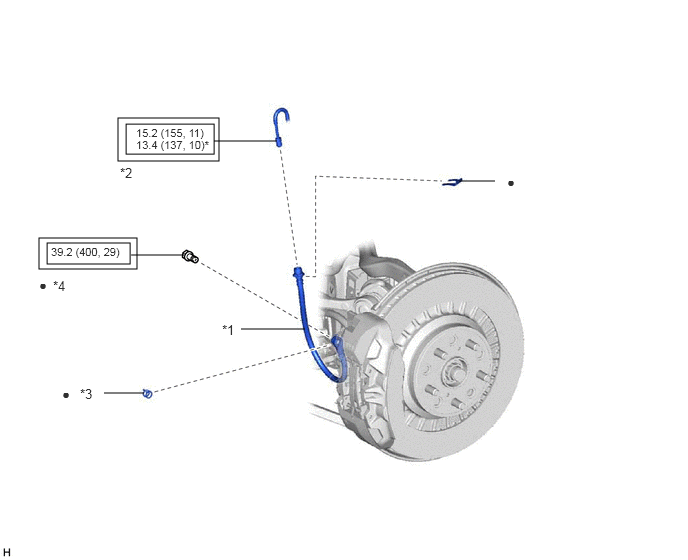

Fig 1: Rear Brake Flexible Hose Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
REAR FLEXIBLE HOSE
*2
BRAKE TUBE
*3
GASKET
*4
UNION BOLT
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)
*
For use with a union nut wrench
•
Non-reusable part
-
-
