Installation [03/2017 - 05/2023]: Procedure

  1. INSTALL SEAT HEATER CONTROL SUB-ASSEMBLY LH

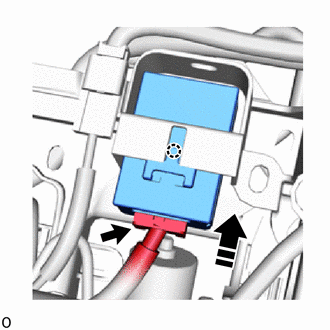

    1. Slide in the installation direction shown in the illustration and attach the claw to install the seat heater control sub-assembly LH.
      GTY781831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Connect the connector.
  2. INSTALL FRONT SEAT ASSEMBLY LH

    Refer to INSTALLATION [03/2017 - 04/2020] , or refer to INSTALLATION [04/2020 - 05/2023]

  3. INITIALIZATION OF SEAT ECU

    Refer to PROCEDURE - Step 2

  4. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK (for Front Passenger Seat)

    Refer to INITIALIZATION [03/2017 - ]
