Installation [03/2017 - 05/2023]: Procedure

  1. INSTALL FRONT POWER SEAT SWITCH LH
    1. Install the front power seat switch LH to the switch bezel with the 4 screws.

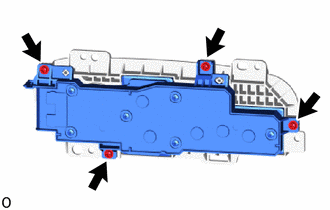

      GTY824604Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SWITCH BEZEL
    1. Attach the claw and install the switch bezel with the 2 screws.

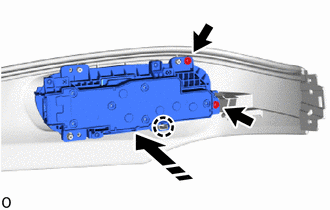

      GTY775734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  3. INSTALL SEAT ADJUSTER SHIELD CLAMP BRACKET LH

    Refer to PROCEDURE - Step 53 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 52 [04/2020 - ]

  4. INSTALL RECLINING POWER SEAT SWITCH KNOB

    Refer to PROCEDURE - Step 54 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 53 [04/2020 - ]

  5. INSTALL SLIDE AND VERTICAL POWER SEAT SWITCH KNOB

    Refer to PROCEDURE - Step 55 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 54 [04/2020 - ]

  6. INSTALL FRONT SEAT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 57 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 56 [04/2020 - ]

  7. INSTALL FRONT SEAT ASSEMBLY LH

    Refer to INSTALLATION [03/2017 - 04/2020] , or refer to INSTALLATION [04/2020 - 05/2023]

  8. INITIALIZATION OF SEAT ECU

    Refer to PROCEDURE - Step 2

  9. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK (for Front Passenger Seat)

    Refer to INITIALIZATION [03/2017 - ]
