Installation [03/2017 - 05/2023]: Procedure

  1. INSTALL POSITION CONTROL ECU ASSEMBLY

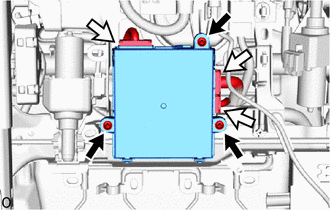

    1. Install the position control ECU assembly with the 3 screws.
      GTY817527Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Connector
    2. Connect the 3 connectors.
  2. INSTALL FRONT SEAT ASSEMBLY LH

    Refer to INSTALLATION [03/2017 - 04/2020] , or refer to INSTALLATION [04/2020 - 05/2023]

  3. INITIALIZATION OF SEAT ECU

    Refer to PROCEDURE - Step 2

  4. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK (for Front Passenger Seat)

    Refer to INITIALIZATION [03/2017 - ]
