Installation [03/2017 - 05/2023]: Procedure

  1. INSTALL LH SEAT FRONT INNER SEATBACK EDGE PROTECTOR (LIMIT SWITCH) (for Inner Side)

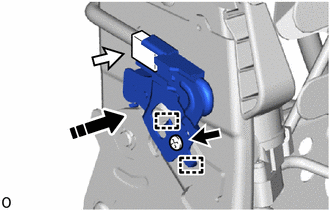

    1. Slide in the installation direction shown in the illustration to attach the guides.
      GTY779510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Connector
      Install in this Direction
    2. Install the limit switch assembly with the screw.
    3. Connect the connector.
  2. INSTALL SEAT RECLINING ADJUSTER INSIDE COVER LH

    Refer to PROCEDURE - Step 36 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 35 [04/2020 - ]

  3. INSTALL SEPARATE TYPE FRONT SEATBACK COVER WITH PAD (for Standard Seat Type)

    Refer to PROCEDURE - Step 39 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 38 [04/2020 - ]

  4. INSTALL FRONT SEATBACK PAD WITH COVER LH (for Sports Seat Type)

    Refer to PROCEDURE - Step 40 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 39 [04/2020 - ]

  5. INSTALL FRONT UPPER SEATBACK COVER SUB-ASSEMBLY LH (for Standard Seat Type)

    Refer to PROCEDURE - Step 41 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 40 [04/2020 - ]

  6. INSTALL FRONT SEAT HEADREST SUPPORT (for Standard Seat Type)

    Refer to PROCEDURE - Step 42 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 41 [04/2020 - ]

  7. INSTALL FRONT SEAT HEADREST SUPPORT (for Sports Seat Type)

    Refer to PROCEDURE - Step 43 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 42 [04/2020 - ]

  8. INSTALL FRONT SEATBACK SUB-ASSEMBLY LH (for Standard Seat Type)

    Refer to PROCEDURE - Step 44 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 43 [04/2020 - ]

  9. INSTALL RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 46 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 45 [04/2020 - ]

  10. INSTALL SEAT ADJUSTER COVER CAP LH

    Refer to PROCEDURE - Step 47 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 46 [04/2020 - ]

  11. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY

    Refer to PROCEDURE - Step 48 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 47 [04/2020 - ]

  12. INSTALL FRONT INNER SEAT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 50 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 49 [04/2020 - ]

  13. INSTALL LH SEAT FRONT OUTER SEATBACK EDGE PROTECTOR (LIMIT SWITCH) (for Outer Side)

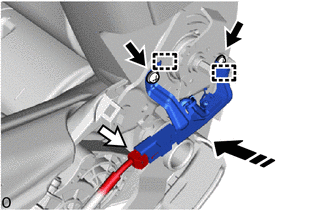

    1. Slide in the installation direction shown in the illustration to attach the guides.
      GTY832339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Screw
      Connector
      Install in this Direction
    2. Install the limit switch assembly with the 2 screws.
    3. Connect the connector.
  14. INSTALL FRONT SEAT CUSHION SHIELD LH

    Refer to PROCEDURE - Step 57 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 56 [04/2020 - ]

  15. INSTALL FRONT SEAT ASSEMBLY LH

    Refer to INSTALLATION [03/2017 - 04/2020] , or refer to INSTALLATION [04/2020 - 05/2023]

  16. INITIALIZATION OF SEAT ECU

    Refer to PROCEDURE - Step 2

  17. PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK (for Front Passenger Seat)

    Refer to INITIALIZATION [03/2017 - ]
