Installation [03/2017 - 05/2023]: Procedure

INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY LH (for Standard Seat Type)

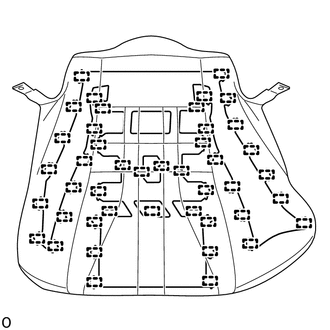

Using a tacker, install the front seat cushion heater assembly LH to the separate type front seat cushion cover with 44 new tack pins.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Secure the front seat cushion heater assembly LH so that it does not bend or stretch.
Set the front seat cushion heater assembly LH so that the nichrome wire is on the separate type front seat cushion cover LH side.

INSTALL FRONT SEAT CUSHION PAD WITH COVER LH (FRONT SEAT CUSHION HEATER) (for Sports Seat Type)

Set the front seat cushion pad with cover LH(front seat cushion heater) on the front seat adjuster assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install in this Direction

Attach the hooks.

Attach the wire harness clamp and connect the connector.

INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER (for Standard Seat Type)
Refer to PROCEDURE - Step 19 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 19 [04/2020 - ]
INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD (for Standard Seat Type)
Refer to PROCEDURE - Step 20 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 20 [04/2020 - ]
INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY
Refer to PROCEDURE - Step 48 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 47 [04/2020 - ]
INSTALL LH SEAT FRONT OUTER SEATBACK EDGE PROTECTOR
See step 13
INSTALL FRONT INNER SEAT CUSHION SHIELD LH
Refer to PROCEDURE - Step 50 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 49 [04/2020 - ]
INSTALL FRONT SEAT CUSHION SHIELD LH
Refer to PROCEDURE - Step 57 [03/2017 - 04/2020] , or refer to PROCEDURE - Step 56 [04/2020 - ]
INSTALL FRONT SEAT ASSEMBLY LH
Refer to INSTALLATION [03/2017 - 04/2020] , or refer to INSTALLATION [04/2020 - 05/2023]
INITIALIZATION OF SEAT ECU
Refer to PROCEDURE - Step 2
PERFORM ZERO POINT CALIBRATION AND SENSITIVITY CHECK (for Front Passenger Seat)
Refer to INITIALIZATION [03/2017 - ]
