Components [05/2023 - ]

Fig 1: Roof Headlining Replacement Components With Torque Specifications [05/2023 - ] (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT DOOR NO. 2 OPENING TRIM COVER LH	*2	FRONT DOOR NO. 2 OPENING TRIM COVER RH
*3	FRONT DOOR OPENING TRIM COVER LH	*4	FRONT DOOR OPENING TRIM COVER RH
*5	FRONT DOOR SCUFF PLATE LH	*6	FRONT DOOR SCUFF PLATE RH
*7	FRONT PILLAR GARNISH LH	*8	FRONT PILLAR GARNISH RH
*9	NO. 1 CONSOLE BOX SUPPORT	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Roof Headlining Replacement Components With Torque Specifications [05/2023 - ] (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER PILLAR GARNISH ASSEMBLY LH	*2	FRONT SEAT OUTER BELT ASSEMBLY LH(FLOOR ANCHOR)
*3	INNER ROOF SIDE GARNISH ASSEMBLY LH	*4	INNER ROOF SIDE GARNISH LH
*5	OUTER LAP BELT ANCHOR COVER	*6	QUARTER INSIDE TRIM BOARD LH
*7	QUARTER TRIM PANEL ASSEMBLY LH	*8	REAR NO. 1 SEAT INNER BELT ASSEMBLY LH
*9	ROOF SIDE RAIL GARNISH ASSEMBLY LH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	-	-

Fig 3: Roof Headlining Replacement Components With Torque Specifications [05/2023 - ] (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CENTER PILLAR GARNISH ASSEMBLY RH	*2	FRONT SEAT OUTER BELT ASSEMBLY RH(FLOOR ANCHOR)
*3	INNER ROOF SIDE GARNISH ASSEMBLY RH	*4	INNER ROOF SIDE GARNISH RH
*5	OUTER LAP BELT ANCHOR COVER	*6	QUARTER INSIDE TRIM BOARD RH
*7	QUARTER TRIM PANEL ASSEMBLY RH	*8	REAR SEAT INNER BELT ASSEMBLY RH
*9	ROOF SIDE RAIL GARNISH ASSEMBLY RH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	-	-

Fig 4: Roof Headlining Replacement Components [05/2023 - ] (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Roof Headlining Replacement Components [05/2023 - ] (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Roof Headlining Replacement Components [05/2023 - ] (6 Of 8)

*A	for Glass Roof	-	-
*1	ACTIVE NOISE CONTROL MICROPHONE	*2	COAT HOOK
*3	NO. 1 ROOF WIRE	*4	ROOF HEADLINING HOLDER COVER
*5	TELEPHONE MICROPHONE ASSEMBLY	*6	CLIP

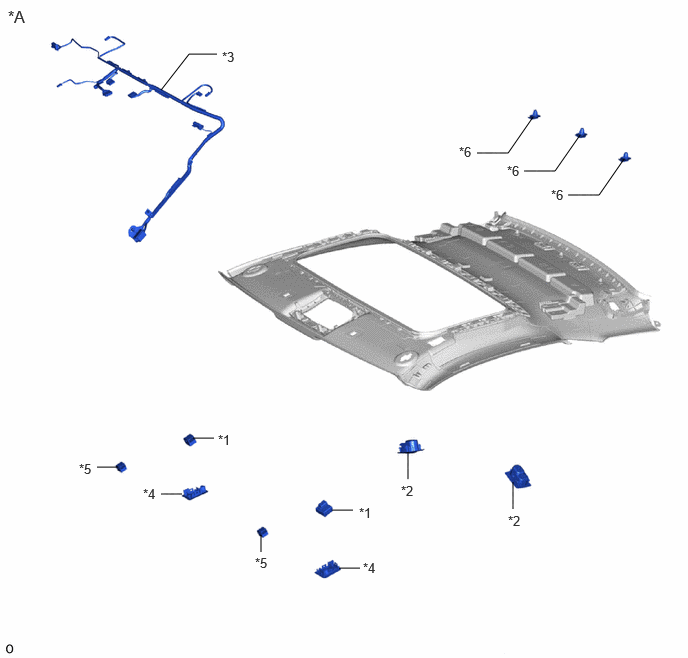

Fig 7: Roof Headlining Replacement Components [05/2023 - ] (7 Of 8)

*A	for Carbon Roof	-	-
*1	ACTIVE NOISE CONTROL MICROPHONE	*2	COAT HOOK
*3	NO. 1 ROOF WIRE	*4	ROOF HEADLINING HOLDER COVER
*5	ROOF SILENCER PAD	*6	TELEPHONE MICROPHONE ASSEMBLY
*7	CLIP	-	-
•	Non-reusable part	-	-

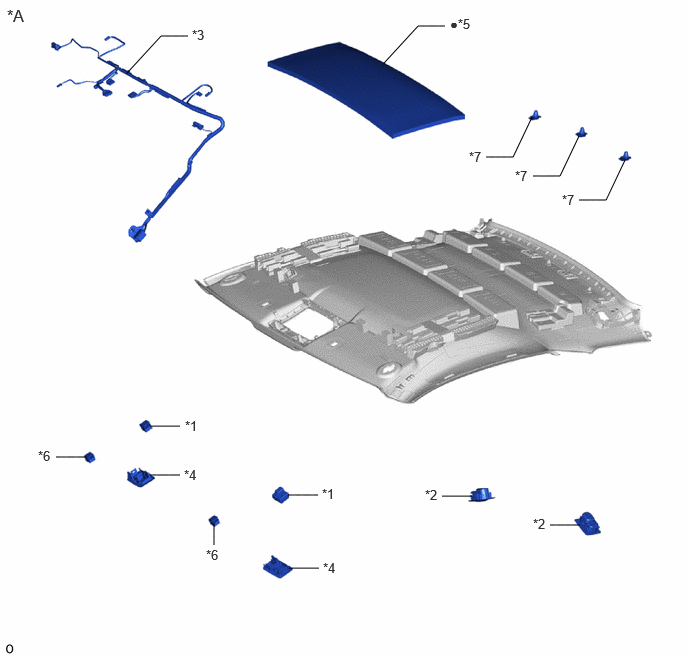

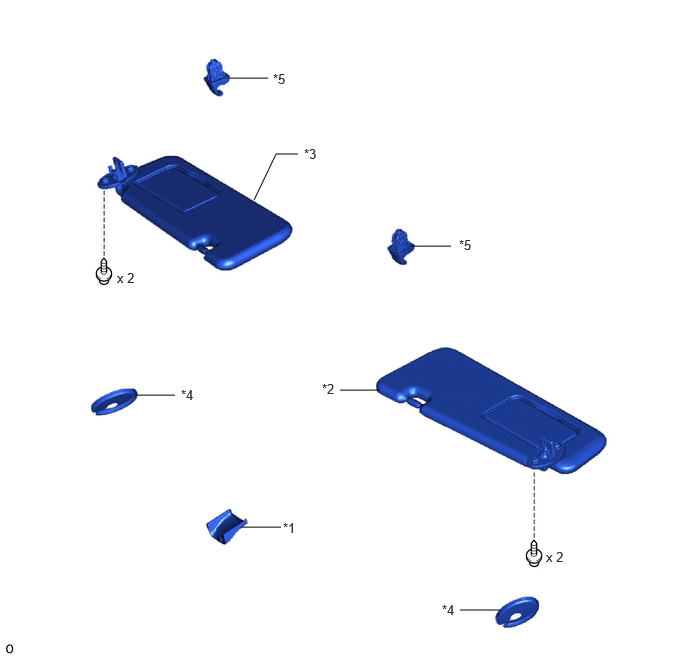

Fig 8: Roof Headlining Replacement Components [05/2023 - ] (8 Of 8)

ROOF SIDE RAIL GARNISH
