Removal [03/2017 - 05/2023]: Procedure

  1. REMOVE REAR CONSOLE BOX POCKET

    Refer to PROCEDURE - Step 1

  2. REMOVE RADIO REMOTE TUNING SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

    Refer to REMOVAL [03/2017 - ]

  4. REMOVE SHIFTING HOLE COVER ASSEMBLY
    1. Apply protective tape at the position shown in the illustration.
      GTY798045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Open the lid of the console box assembly.
    3. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claws.
      GTY792660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction

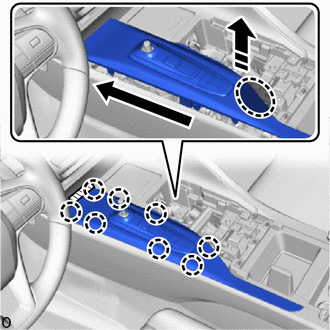

    4. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow and detach the claws in the order indicated by the arrow.
      GTY811547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction
      Order of Removal
    5. Pull out the shift lever in the direction of the arrow shown in the illustration and remove the shifting hole cover assembly.
      GTY805427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    6. Disconnect the 3 connectors.
      GTY825572Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE REAR SEAT CUSHION ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. REMOVE REAR SEAT CUSHION LOCK HOOK

    Refer to PROCEDURE - Step 2

  7. REMOVE UPPER CONSOLE BOX

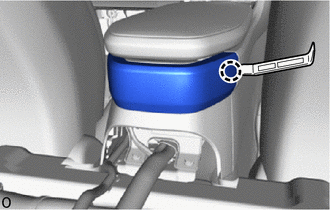

    1. Using moulding remover A, detach the claw.
      GTY838351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Place your hand in the gap in the vehicle and while pulling towards the rear of the vehicle, detach the claws and guide and remove the upper console box.
      GTY788917Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction
  8. REMOVE LOWER CONSOLE BOX
    1. Place your hand at the position shown in the illustration and pull diagonally to the rear of the vehicle to detach the claws and remove the lower console box.
      GTY807765Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction
  9. REMOVE EQUIPMENT SET PANEL COVER

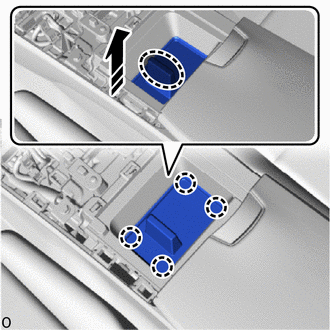

    1. Place your hand at the position shown in the illustration and pull in the direction of the arrow to detach the claws and remove the equipment set panel cover.
      GTY833027Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction
  10. REMOVE EQUIPMENT SET PANEL

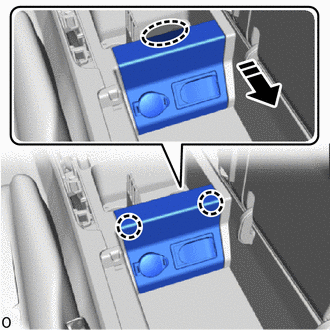

    1. Place your hand at the position shown in the illustration and pull in the direction indicated by the arrow to detach the claws.
      GTY817078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction

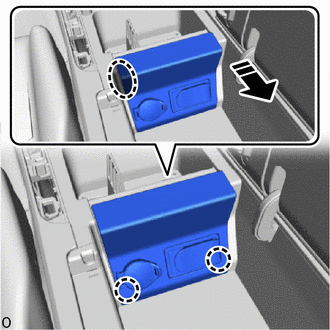

    2. Place your hand in the gap and while pulling in the direction of the arrow to detach the claws and remove the equipment set panel.
      GTY817675Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place hand here
      Remove in this Direction

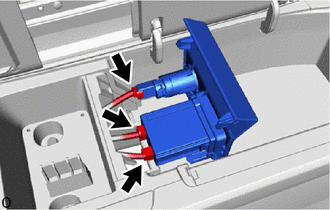

    3. Disconnect the 3 connectors.
      GTY825560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE NO. 1 GLOVE COMPARTMENT PANEL

    Refer to PROCEDURE - Step 17 [03/2017 - 06/2019] , or refer to PROCEDURE - Step 17 [06/2019 - 04/2020] , or refer to PROCEDURE - Step 17 [04/2020 - 05/2023]

  12. REMOVE CONSOLE BOX ASSEMBLY

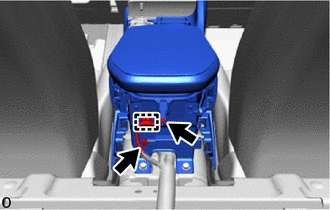

    1. Detach the clamp and disconnect the 2 connectors.
      GTY825557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

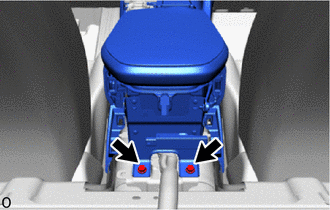

    2. Remove the 2 bolts.
      GTY825556Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

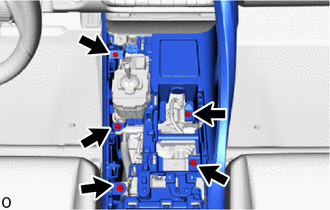

    3. Remove the 5 bolts.
      GTY825555Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the 2 bolts.
      GTY825554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Remove the bolt.
      GTY825553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Detach the clip, claws and guides in the direction of the arrow shown in the illustration to remove the console box assembly.
      GTY781676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
