Disassembly [03/2017 - 05/2023]: Procedure

  1. REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY

    HINT:

    Perform this procedure only when replacing console compartment door lock sub-assembly.

    1. Peel off and remove the 2 No. 1 rear seat console table plugs.
      GTY1086071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and console compartment door lock sub-assembly.
      GTY1085467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Console Box Cushion
      NOTE:

      When removing the console compartment door lock sub-assembly, make sure that the console box cushion does not drop from the console box assembly.

  2. REMOVE INSTRUMENT PANEL CUP HOLDER
    1. Remove the 4 screws and instrument panel cup holder.
      GTY825470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE CONSOLE COMPARTMENT DOOR PAD SUB-ASSEMBLY
    1. Peel off and remove the 2 No. 1 rear seat console table plugs.
      GTY951183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws.
      GTY949992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Place your hand at the position shown in the illustration, detach the claw and remove the rear upper console panel.
      GTY950710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    4. Place your finger at the position shown in the illustration and detach the clip in the order shown in the illustration.
      GTY950389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
    5. Detach the clip and remove the No. 2 console box hole cover in the direction of the arrow shown in the illustration.
      GTY951322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    6. Remove the 2 screws.
      GTY951175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

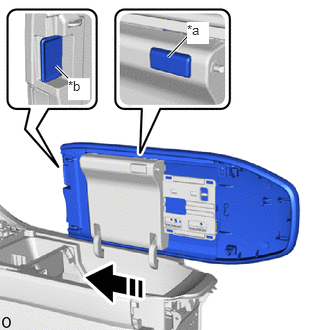

    7. Release the slide lock, and then while pushing the slide knob, move the No. 1 console compartment door lock sub-assembly in the direction of the arrow shown in the illustration.
      GTY951279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Slide Lock
      *b Slide Knob
      Slide in this Direction
    8. GTY949989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 2 screws.

    9. Using needle-nose pliers, remove the spring.
      GTY951167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    10. While pushing the slide knob, remove the No. 1 console compartment door lock sub-assembly in the direction of the arrow shown in the illustration.
      GTY951189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Slide Knob
      Remove in this Direction
