COMBINATION SWITCH (for Console Box)
>>
Components [05/2023 - ]
Components [05/2023 - ]

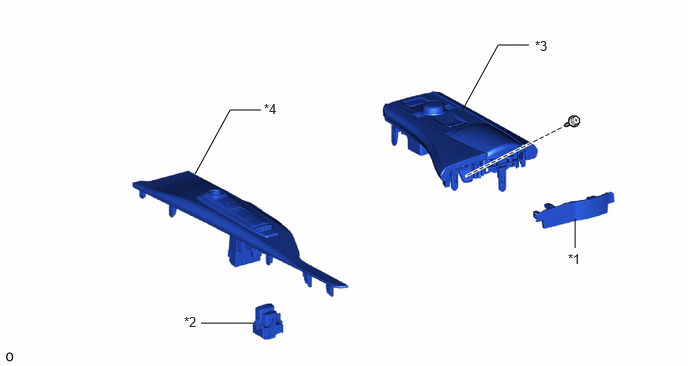

Fig 1: Combination Switch (For Console Box) Replacement Components [05/2023 - ]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
CONSOLE PLATE
*2
NO. 4 COMBINATION SWITCH ASSEMBLY
*3
RADIO REMOTE TUNING SWITCH ASSEMBLY
*4
SHIFTING HOLE COVER ASSEMBLY
