Removal [03/2017 - ]: Procedure

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

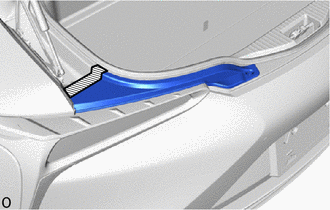

   Apply protective tape at the position as shown in the illustration.

2. Using moulding remover B, detach the claws <A>.

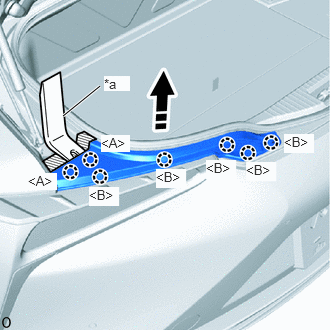

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Moulding Remover B
   	Remove in this Direction

3. Detach the claws <B> and remove the rear combination light cover LH.

HINT:

Use the same procedure described for the LH side.

1. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Detach the claws and remove the rear bumper center guard.

1. Remove the 4 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the 8 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Fold back a part of edge of the rear fender liner, remove the screw and detach the claw and grommet.

   HINT:

   Use the same procedure for the RH and LH sides.

5. Using a screwdriver with its tip wrapped with protective tape, detach the claw <A>.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Remove in this Direction
   	Protective Tape

   HINT:

   Use the same procedure for the RH and LH sides.

6. Detach the claws <B>.

   HINT:

   Use the same procedure for the RH and LH sides.

7. Detach the claws <C>.

   HINT:

   Use the same procedure for the RH and LH sides.

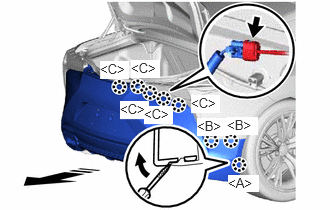

8. Disconnect the connector and remove the rear bumper cover as shown in the illustration.
