Components [03/2017 - 06/2019]

Fig 1: Front Bumper Replacement Components With Torque Specifications [03/2017 - 06/2019] (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NEGATIVE BATTERY TERMINAL	*2	NO. 2 DECK BOARD
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

Fig 2: Front Bumper Replacement Components With Torque Specifications [03/2017 - 06/2019] (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

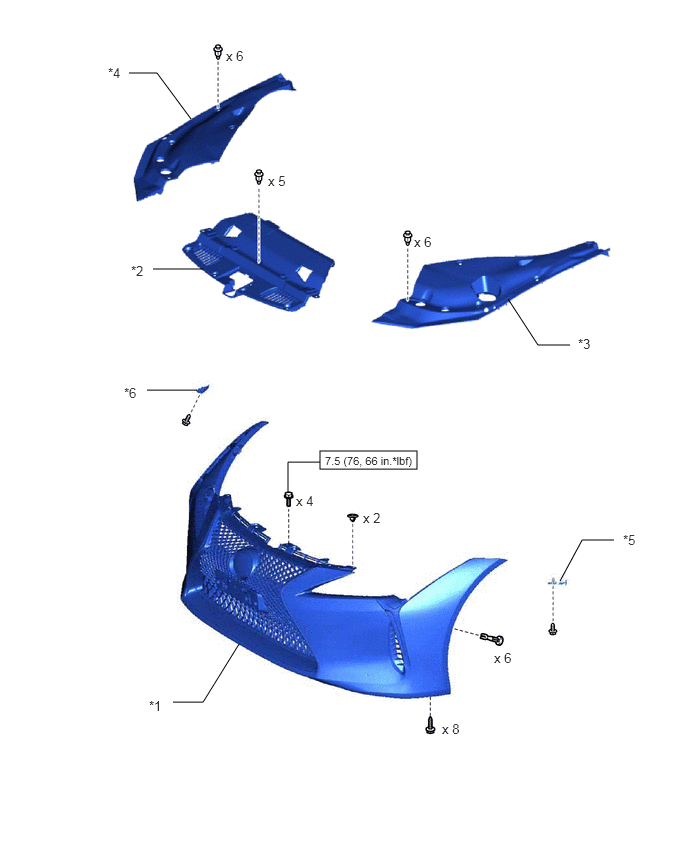

*1	FRONT BUMPER COVER	*2	LOWER RADIATOR AIR DEFLECTOR
*3	RADIATOR SUPPORT TO FRAME SEAL LH	*4	RADIATOR SUPPORT TO FRAME SEAL RH
*5	FRONT SIDE BUMPER RETAINER LH	*6	FRONT SIDE BUMPER RETAINER RH
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 3: Front Bumper Replacement Components [03/2017 - 06/2019] (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Intuitive Parking Assist System	*B	w/ Intuitive Parking Assist System
*1	FRONT CENTER ULTRASONIC SENSOR	*2	FRONT CORNER ULTRASONIC SENSOR
*3	FRONT CORNER ULTRASONIC SENSOR RETAINER	*4	NO. 4 ENGINE ROOM WIRE
*5	ULTRASONIC SENSOR CLIP	-	-
•	Non-reusable part	-	-

Fig 4: Front Bumper Replacement Components [03/2017 - 06/2019] (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT BUMPER EXTENTION MOUNTING BRACKET	*2	FRONT BUMPER GARNISH
*3	FRONT BUMPER GARNISH LH	*4	FRONT BUMPER HOLE COVER RH
*5	FRONT BUMPER MOUNTING BRACKET	*6	FRONT FENDER LINER RETAINER
*7	FRONT MARKER LIGHT ASSEMBLY LH	*8	FRONT MARKER LIGHT ASSEMBLY RH
*9	FRONT TURN SIGNAL LIGHT ASSEMBLY LH	*10	FRONT TURN SIGNAL LIGHT ASSEMBLY RH
*11	LOWER SIDE RADIATOR GRILLE LH	*12	LOWER SIDE RADIATOR GRILLE RH
*13	NO. 1 FRONT BUMPER SIDE SUPPORT LH	*14	NO. 1 FRONT BUMPER SIDE SUPPORT RH
*15	NO. 1 MOULDING TAPE	*16	RADIATOR GRILLE SUB-ASSEMBLY
•	Non-reusable part	-	-

Fig 5: Front Bumper Replacement Components [03/2017 - 06/2019] (5 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Front Bumper Replacement Components With Torque Specifications [03/2017 - 06/2019] (6 Of 7)

*1	LOWER RADIATOR GRILLE	*2	MILLIMETER WAVE RADAR SENSOR ASSEMBLY
*3	NO. 2 RADIATOR GRILLE MOULDING	*4	RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
*5	RADIATOR GRILLE MOULDING	*6	UPPER RADIATOR GRILLE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 7: Front Bumper Replacement Components With Torque Specifications [03/2017 - 06/2019] (7 Of 7)

*A	for Type A	*B	for Type B

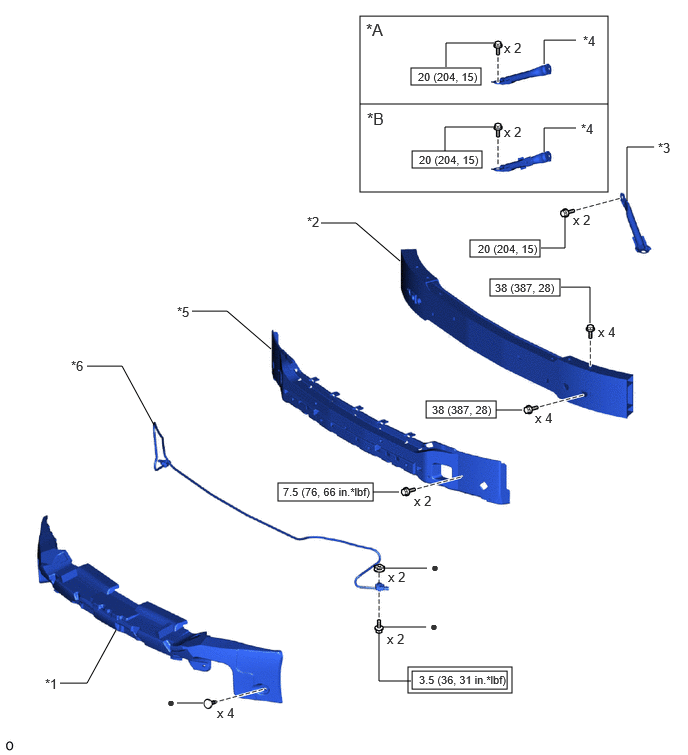

*1	FRONT BUMPER ENERGY ABSORBER	*2	FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY
*3	LOWER ARM BRACKET BRACE SUB-ASSEMBLY LH	*4	LOWER ARM BRACKET BRACE SUB-ASSEMBLY RH
*5	NO. 2 FRONT BUMPER MOUNTING BRACKET	*6	PEDESTRIAN DETECTION CHAMBER ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-
