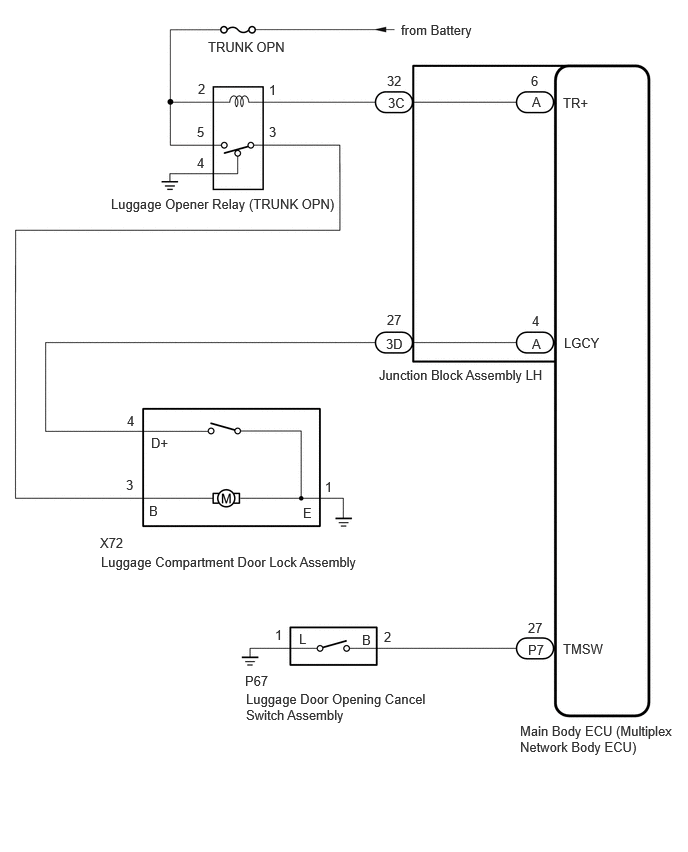

Luggage Compartment Door Opener does not Operate Using Any Operation [05/2023 - ]: Wiring Diagram

GTY1241951

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
