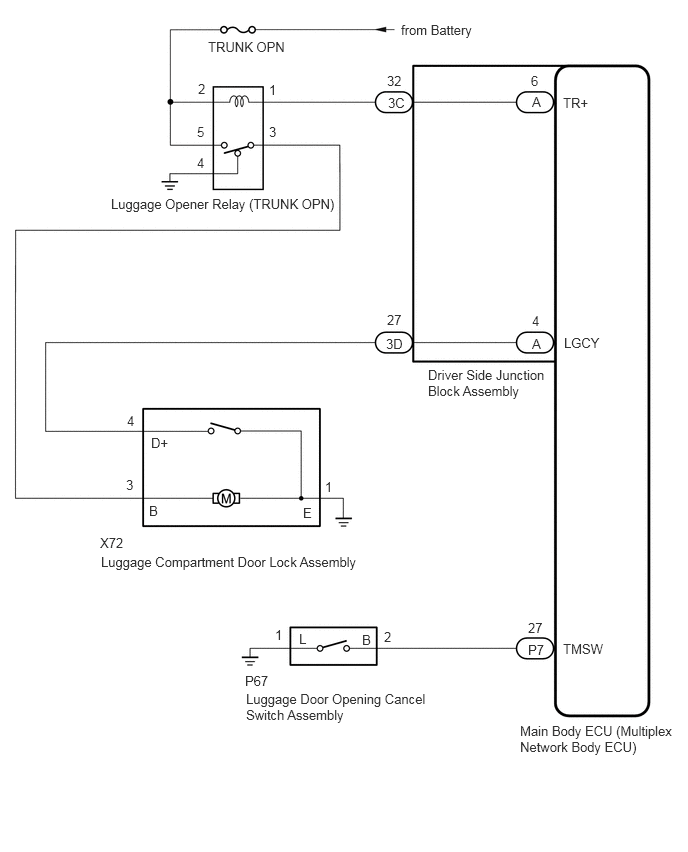

Luggage Compartment Door Opener does not Operate Using Any Operation [03/2017 - 05/2023]: Wiring Diagram

GTY783793

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
